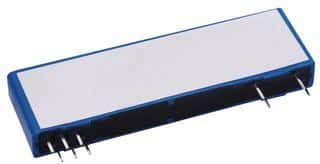

Isolation Amplifier with 10kHz bandwidth and 1.5kV isolation voltage. Features a 106dB Common Mode Rejection Ratio and 0.5V/µs slew rate. Operates across a military temperature range of -55°C to 125°C with a supply voltage of 12V to 16V. Through-hole mounting in a PDIP package with tin/lead contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD203SN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Amplifier Type | ISOLATION |
| Bandwidth | 10kHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 106dB |
| Contact Plating | Tin, Lead |
| Gain Bandwidth Product | 10kHz |
| Input Bias Current | 30pA |
| Input Offset Voltage (Vos) | 5mV |
| Isolation Voltage | 1.5kV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 12V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 15V |
| Output Current per Channel | 4mA |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Supply Current | 20mA |
| RoHS | Not Compliant |
