Isolation amplifier with 120kHz bandwidth and 6V/µs slew rate. Features 1.5kV isolation voltage, 100dB common mode rejection, and 2GR input resistance. Operates with dual supply voltages from ±14.25V to ±17V, drawing 40mA operating current. SIP package with through-hole mounting. Input offset voltage is 400µV with 300nA input bias current.
PackageSIP
Resistance2GR
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD215BY technical specifications.
General
-3db Bandwidth
120kHz
Amplifier Type
ISOLATION
Package/Case
SIP
Common Mode Rejection Ratio
100dB
Contact Plating
Tin, Lead
Dual Supply Voltage
15V
Height
21.4mm
Input Bias Current
300nA
Input Offset Voltage (Vos)
400uV
Input Resistance
2GR
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Max Dual Supply Voltage
17V
Min Dual Supply Voltage
14.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
17V
Min Supply Voltage
14.25V
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
40mA
Output Current per Channel
5mA
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
2GR
Response Time
9us
RoHS Compliant
No
Slew Rate
6V/µs
Voltage Gain
20dB
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD215BY Datasheet
Download the complete datasheet for Analog Devices AD215BY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

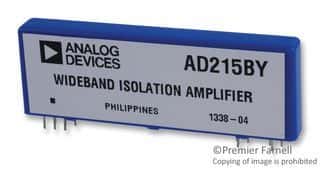

Product Images
