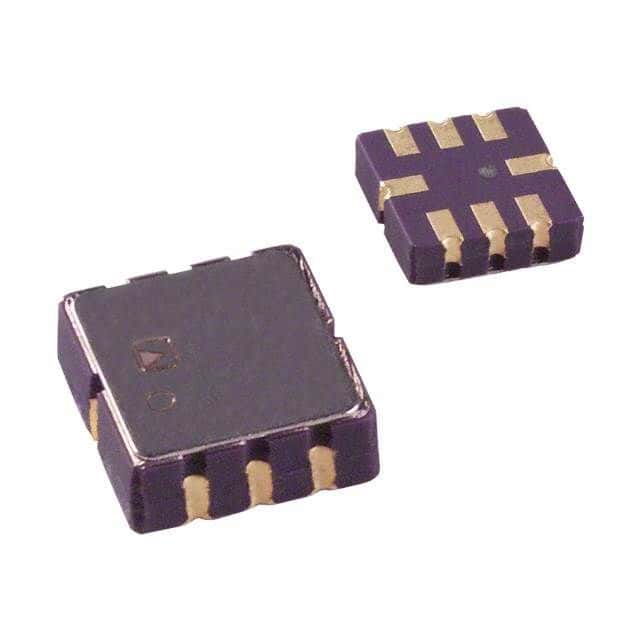

Dual-axis analog accelerometer with selectable full-scale ranges of ±1.7 g, ±5 g, and ±18 g. Features a 2.5 kHz -3 dB bandwidth and a 0.5 Hz bandwidth. Operates from a 3 V to 6 V supply voltage with a nominal supply current of 700 µA. Packaged in a CLCC with gold contact plating, this component offers a sensitivity of 100 mV/g.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD22037Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD22037Z technical specifications.
| -3db Bandwidth | 2.5kHz |
| Axis | X, Y |
| Bandwidth | 0.5Hz |
| Package/Case | CLCC |
| Contact Plating | Gold |
| Depth | 5mm |
| Height | 1.95mm |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 700uA |
| Output Type | Analog |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | 100mV/g |
| Series | iMEMS® |
| Supply Current | 700nA |
| Width | 5.15mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD22037Z to view detailed technical specifications.
