Analog Devices
AD5247BKS100-R2
IC 100K DIGITAL POTENTIOMETER, 2-WIRE SERIAL CONTROL INTERFACE, 128 POSITIONS, PDSO6, MO-203AB, SC-70, 6 PIN, Digital Potentiometer
Frequency400kHz
PackageSC
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD5247BKS100-R2 technical specifications.
General
Package/Case
SC
Frequency
400kHz
Interface
I2C, Serial, 2-Wire
Max Operating Temperature
125°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Taps
128
Packaging
Cut Tape
Quiescent Current
3uA
Resistance
100kR
RoHS Compliant
No
Taper
Linear
Tolerance
20%
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD5247BKS100-R2 Datasheet
Download the complete datasheet for Analog Devices AD5247BKS100-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

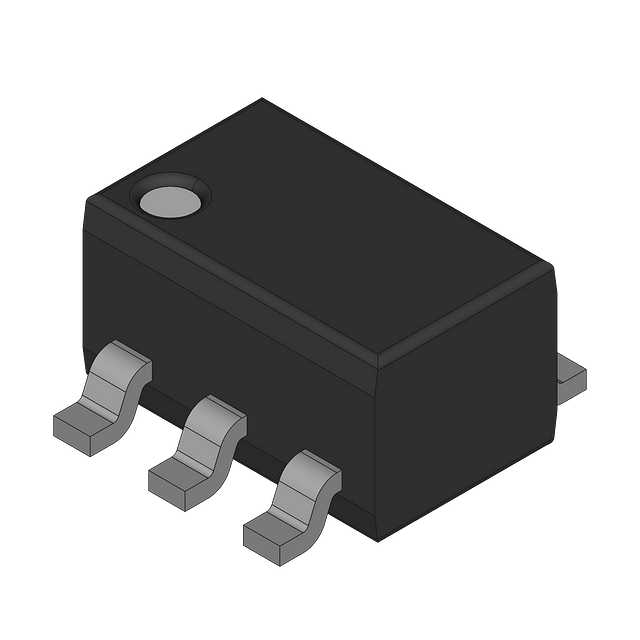

Product Images
