Quad 256-position digital potentiometer with I<sup>2</sup>C interface, featuring 10kΩ resistance and 20% tolerance. Operates with dual supply voltages from 2.25V to 2.75V, and a single supply from 2.7V to 5.5V. Offers a 3dB bandwidth of 4MHz and a maximum operating frequency of 400kHz. This surface mount component is housed in a TSSOP package with tin, matte contact plating, and operates across a temperature range of -40°C to 85°C.
Frequency400kHz
PackageTSSOP
Current3uA
Resistance10kR
Quick Jump:
Technical Specifications
Analog Devices AD5254BRUZ10 technical specifications.
General
-3db Bandwidth
4MHz
Package/Case
TSSOP
Contact Plating
Tin, Matte
Dual Supply Voltage
2.5V
Frequency
400kHz
Height
1.05mm
Interface
I2C
Lead Free
Contains Lead
Length
6.5mm
Max Dual Supply Voltage
2.75V
Max Operating Temperature
85°C
Max Supply Current
5uA
Max Supply Voltage
5.5V
Memory Type
Non-Volatile
Min Dual Supply Voltage
2.25V
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
256
Number of Taps
256
Operating Supply Current
3uA
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
3uA
Taper
Linear
Tolerance
20%
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5254BRUZ10 Datasheet
Download the complete datasheet for Analog Devices AD5254BRUZ10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

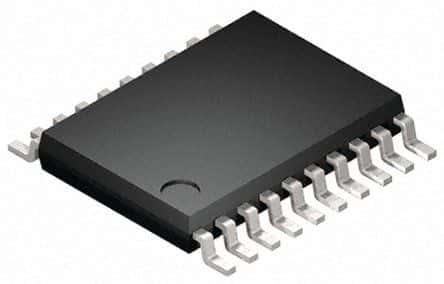

Product Images
