256-position, non-volatile digital potentiometer with I<sup>2</sup>C interface. Features a 10kΩ resistance with 30% tolerance and a linear taper. Operates with a supply voltage range of 2.7V to 5.5V, drawing a maximum supply current of 100nA. Offers a 3dB bandwidth of 2MHz and supports a 400kHz frequency. Packaged in a compact 3mm x 3mm x 0.85mm MSOP with tin, matte contact plating, suitable for surface mounting.
Frequency400kHz
PackageMSOP
Current3uA
Resistance10kR
Quick Jump:
Technical Specifications
Analog Devices AD5259BRMZ10 technical specifications.
General
-3db Bandwidth
2MHz
Package/Case
MSOP
Contact Plating
Tin, Matte
Frequency
400kHz
Height
0.85mm
Interface
I2C
Lead Free
Contains Lead
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
100nA
Max Supply Voltage
5.5V
Memory Type
Non-Volatile
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
256
Number of Taps
256
Operating Supply Current
3uA
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
100nA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
30%
RoHS Compliant
Yes
Supply Current
3uA
Taper
Linear
Tolerance
30%
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5259BRMZ10 Datasheet
Download the complete datasheet for Analog Devices AD5259BRMZ10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

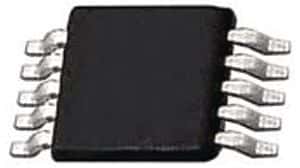

Product Images
