4-bit analog multiplier/divider IC featuring a 1MHz -3dB bandwidth and 1% accuracy. This through-hole component is housed in a 10-pin TO-100 package with gold contact plating. It operates with dual supply voltages between 10V and 18V, drawing a maximum supply current of 6mA. Key performance specifications include a 45V/µs slew rate and a 1µs settling time, with a maximum output voltage of 10V.
Frequency1MHz
PackageTO-100-10
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD532KHZ technical specifications.
General
-3db Bandwidth
1MHz
Accuracy
1%
Package/Case
TO-100-10
Contact Plating
Gold
Height
4.7mm
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
10V
Max Frequency
1MHz
Max Input Voltage
10V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
6mA
Max Supply Voltage
18V
Min Supply Voltage
10V
Mount
Through Hole
Number of Amplifiers
3
Number of Bits
4
Operating Supply Current
6mA
Output Voltage
10V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
1us
Slew Rate
45V/µs
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD532KHZ Datasheet
Download the complete datasheet for Analog Devices AD532KHZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

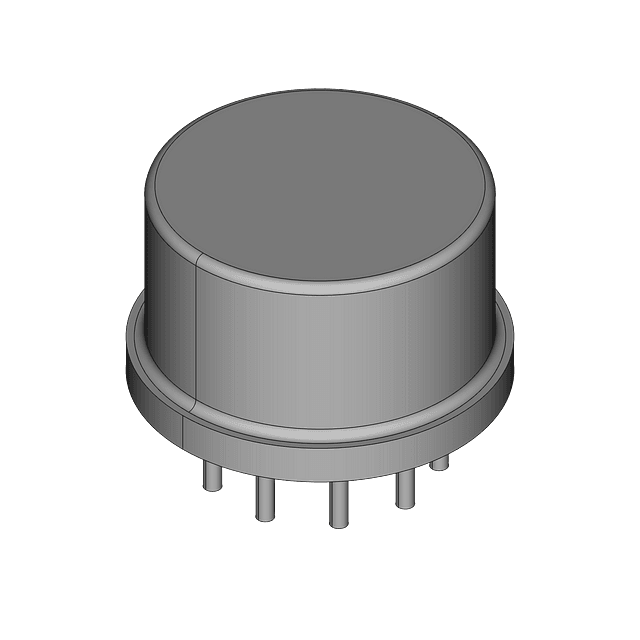

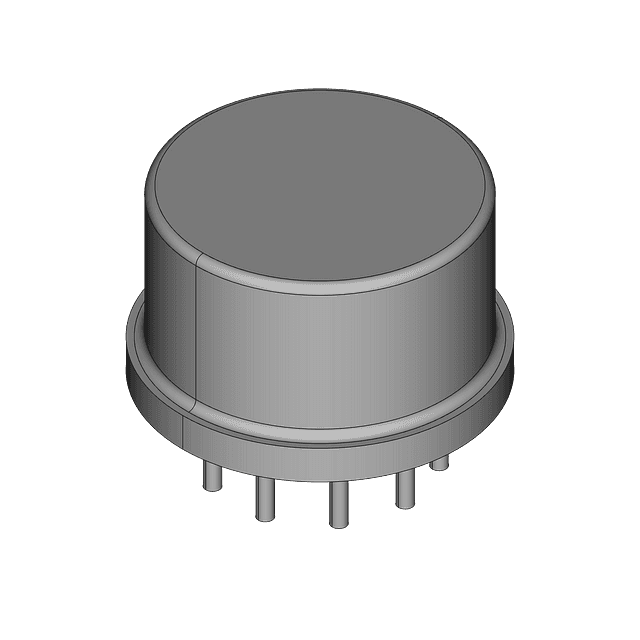

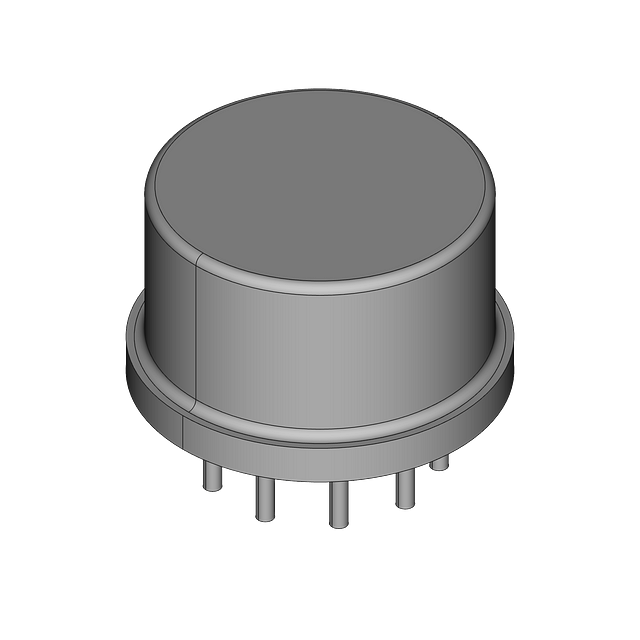

Product Images
