4-bit analog multiplier/divider IC featuring a 1MHz -3dB bandwidth and 0.25% accuracy. This through-hole component operates with dual supply voltages from ±8V to ±18V, offering a maximum output voltage of 11V. It boasts a 20V/µs slew rate and a 2µs settling time, with a maximum power dissipation of 500mW. The TO-100-10 package with gold contact plating ensures reliable performance across an operating temperature range of -55°C to 125°C.
Frequency1MHz
PackageTO-100-10
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD534LHZ technical specifications.
General
-3db Bandwidth
1MHz
Accuracy
0.25%
Package/Case
TO-100-10
Contact Plating
Gold
Dual Supply Voltage
15V
Height
4.7mm
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
8V
Max Frequency
1MHz
Max Input Voltage
10V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Current
6mA
Max Supply Voltage
18V
Min Supply Voltage
8V
Mount
Through Hole
Number of Amplifiers
4
Number of Bits
4
Number of Elements
1
Operating Supply Current
6mA
Output Voltage
11V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
2us
Slew Rate
20V/µs
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD534LHZ Datasheet
Download the complete datasheet for Analog Devices AD534LHZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

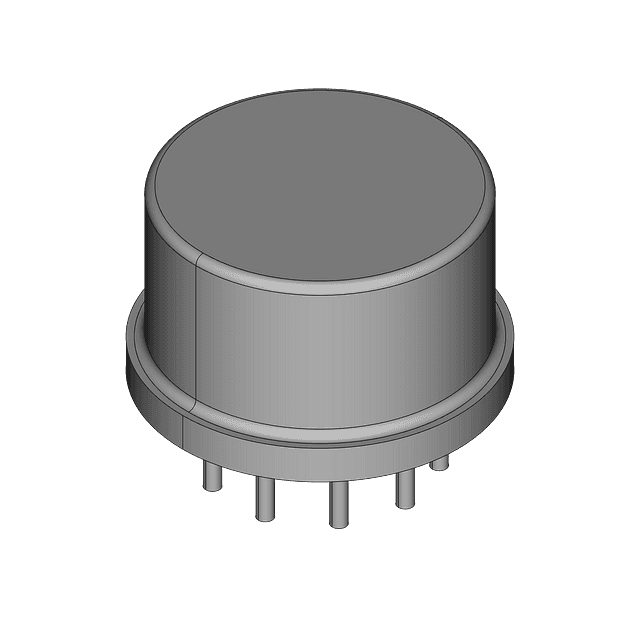

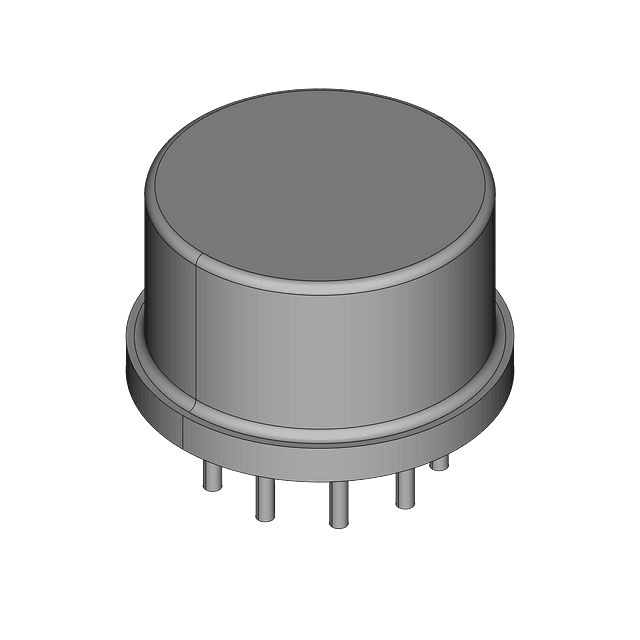

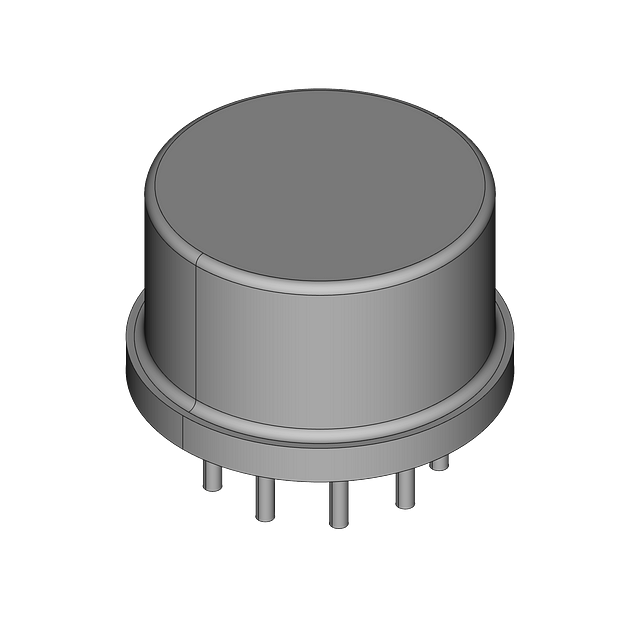

Product Images
