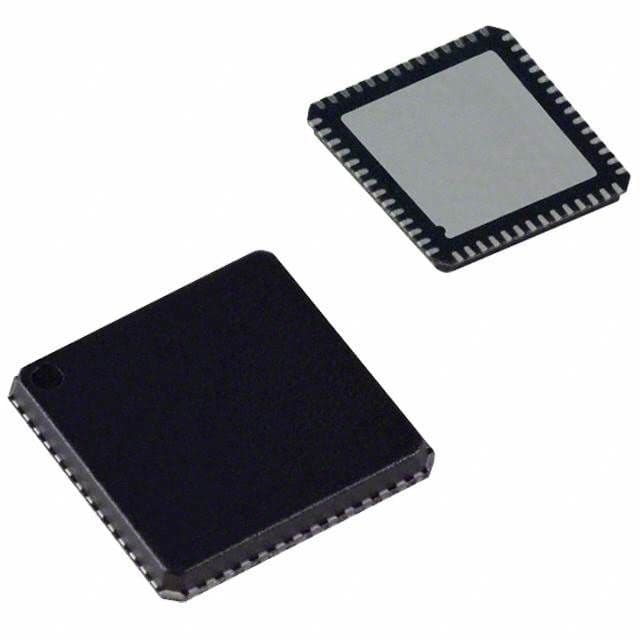

16-channel, 16-bit voltage-output digital-to-analog converter (DAC) with serial SPI interface. Features bipolar output polarity, 16-bit resolution, and a sampling rate of 540 kS/s. Offers integral nonlinearity of 4 LSB, settling time of 20 µs, and slew rate of 1 V/µs. Operates with dual supply voltages from 8V to 16.5V, and has a maximum power dissipation of 245mW. Packaged in a tray with tin, matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5360BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD5360BCPZ technical specifications.
| Contact Plating | Tin, Matte |
| Differential Output | No |
| Dual Supply Voltage | 9V |
| Height | 0.83mm |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Contains Lead |
| Length | 8mm |
| Max Dual Supply Voltage | 16.5V |
| Max Input Voltage | 5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 8V |
| Max Power Dissipation | 245mW |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 8V |
| Number of Bits | 16 |
| Number of Converters | 16 |
| Number of D/A Converters | 16 |
| Number of DAC Channels | 16 |
| Output Polarity | Bipolar |
| Output Type | Voltage |
| Package Quantity | 260 |
| Packaging | Tray |
| Power Dissipation | 130mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 540KS/s |
| Settling Time | 20us |
| Slew Rate | 1V/µs |
| Width | 8mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD5360BCPZ to view detailed technical specifications.
