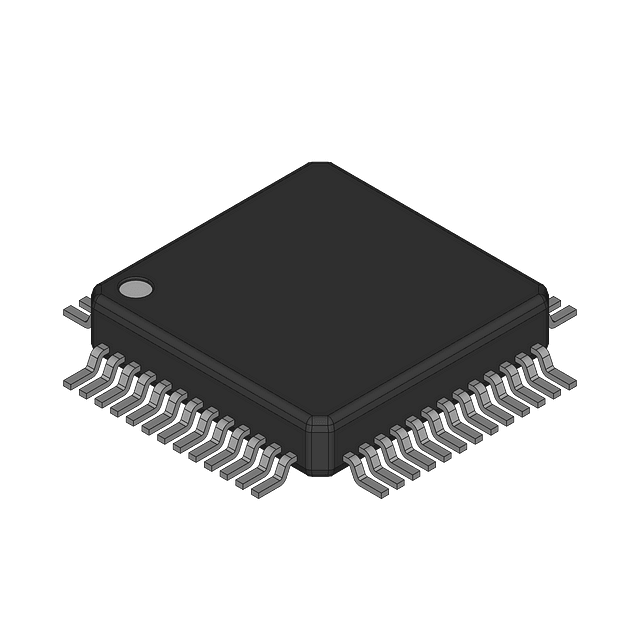

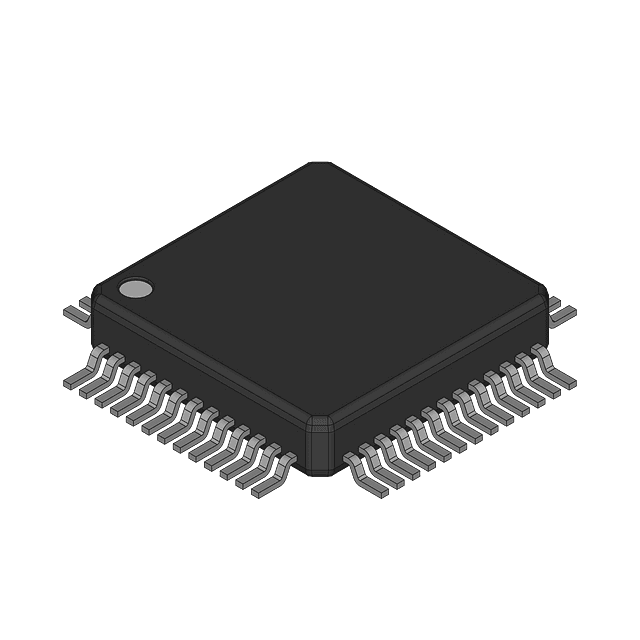

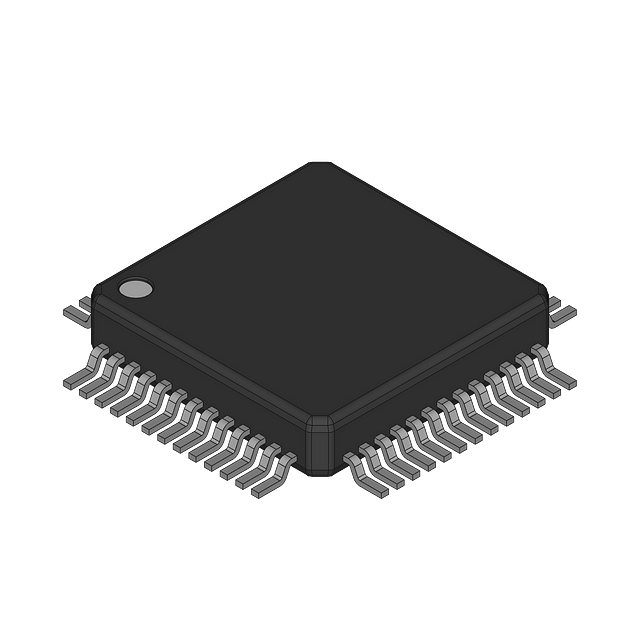

16-channel, 14-bit voltage-output digital-to-analog converter (DAC) with serial input and SPI interface. Features a 1LSB integral nonlinearity, 540 kS/s sampling rate, and 20µs settling time. Operates with a maximum supply voltage of 16.5V and a maximum output voltage of 20V. Housed in an LQFP package with SMD/SMT termination, this RoHS compliant component offers bipolar and unipolar output polarity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5361BSTZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Differential Output | No |
| Frequency | 50MHz |
| Height | 1.45mm |
| Input Type | SERIAL |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Contains Lead |
| Length | 10.2mm |
| Max Dual Supply Voltage | 16.5V |
| Max Input Voltage | 5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 8V |
| Max Power Dissipation | 245mW |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 8V |
| Number of Bits | 14 |
| Number of Channels | 16 |
| Number of Converters | 16 |
| Number of D/A Converters | 16 |
| Number of DAC Channels | 6 |
| Number of Outputs | 16 |
| Output Polarity | Bipolar, Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 130mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 540KS/s |
| Settling Time | 20us |
| Slew Rate | 1V/µs |
| Supply Current | 10mA |
| Termination | SMD/SMT |
| Width | 10.2mm |
| RoHS | Compliant |
