PackageDIP
Current1.2mA
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Analog Devices AD536AJD technical specifications.
General
-3db Bandwidth
450kHz
Bandwidth
2MHz
Package/Case
DIP
Contact Plating
Tin, Lead
Dynamic Range
60dB
Lead Free
Contains Lead
Max Input Voltage
7V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
500mW
Max Supply Voltage
36V
Min Supply Voltage
5V
Mount
Through Hole
Number of Converters
1
Operating Supply Current
2mA
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Supply Current
1.2mA
Termination
Through Hole
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD536AJD Datasheet
Download the complete datasheet for Analog Devices AD536AJD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

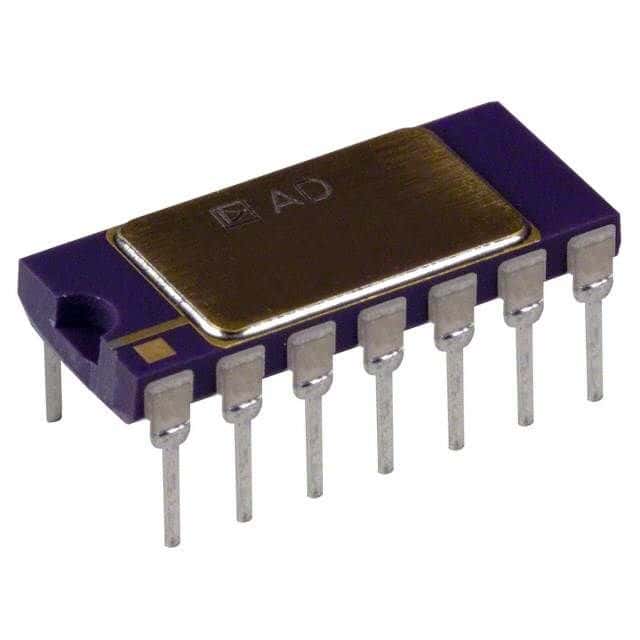

Product Images
