The AD536AJQ is a single-channel RMS to DC converter with a -3dB bandwidth of 450kHz. It is packaged in a CDIP and is designed for through-hole mounting. The converter operates over a temperature range of 0°C to 70°C and has a maximum power dissipation of 500mW. The AD536AJQ is not radiation hardened and is not compliant with RoHS or Reach SVHC regulations.
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD536AJQ technical specifications.
General
| -3db Bandwidth | 450kHz |
| Bandwidth | 450kHz |
| Package/Case | CDIP |
| Contact Plating | Tin, Lead |
| Height | 3.56mm |
| Lead Free | Contains Lead |
| Length | 19.94mm |
| Max Input Voltage | 7V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Converters | 1 |
| Operating Supply Current | 2mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Width | 7.87mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices AD536AJQ Datasheet
Download the complete datasheet for Analog Devices AD536AJQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

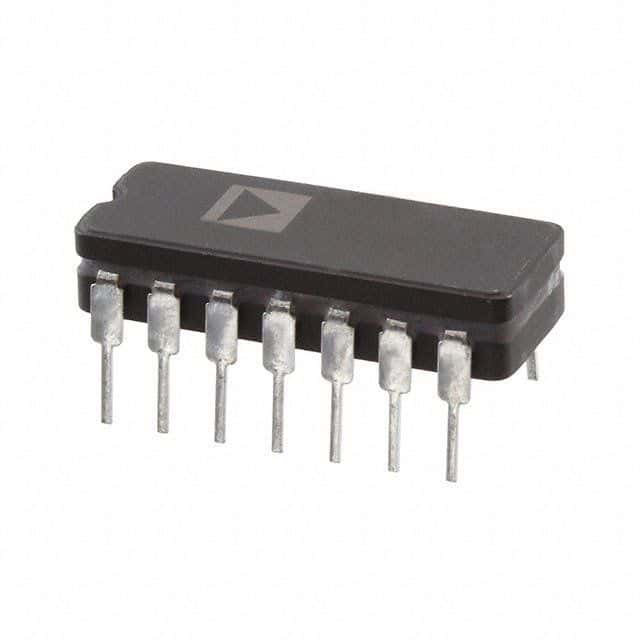

Product Images
