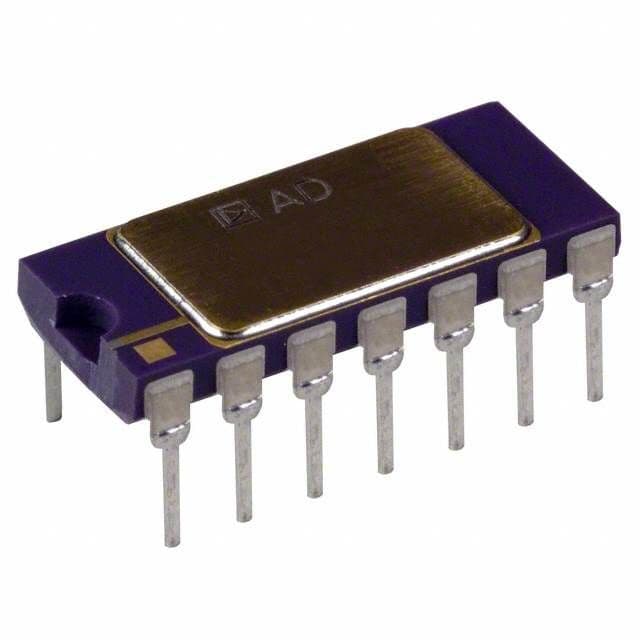

The AD536ASD is a single-channel RMS to DC converter with a -3dB bandwidth of 450kHz and a maximum operating temperature of 125°C. It is packaged in a CDIP and is available in a quantity of 25. The device is not radiation hardened and is not RoHS compliant. The AD536ASD has a maximum power dissipation of 500mW and an operating supply current of 2mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD536ASD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 450kHz |
| Bandwidth | 2.3MHz |
| Package/Case | CDIP |
| Contact Plating | Tin, Lead |
| Lead Free | Contains Lead |
| Max Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Converters | 1 |
| Operating Supply Current | 2mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 1.2mA |
| RoHS | Not CompliantNo |
