Voltage-to-Frequency (VFC) converter IC with 0.05% linearity and 0.25% accuracy, operating up to 100kHz. Features a 14-pin CDIP package with Tin/Lead contact plating, designed for through-hole mounting. Supports dual supply voltages from ±5V to ±9V, with a maximum dual supply of ±18V. Offers a single supply range of 4.5V to 36V, with a nominal operating supply current of 2.5mA. Operating temperature range is 0°C to 70°C.
Frequency150kHz
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD537JD technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | CDIP |
| Contact Plating | Tin, Lead |
| Dual Supply Voltage | 9V |
| Frequency | 150kHz |
| Height | 3.56mm |
| Lead Free | Contains Lead |
| Length | 19.94mm |
| Linearity | 0.05% |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 5V |
| Max Frequency | 100kHz |
| Max Input Voltage | 11V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 2.5mA |
| Operating Supply Current | 2.5mA |
| Operating Supply Voltage | 28V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1V |
| RoHS Compliant | No |
| Width | 7.87mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices AD537JD Datasheet
Download the complete datasheet for Analog Devices AD537JD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

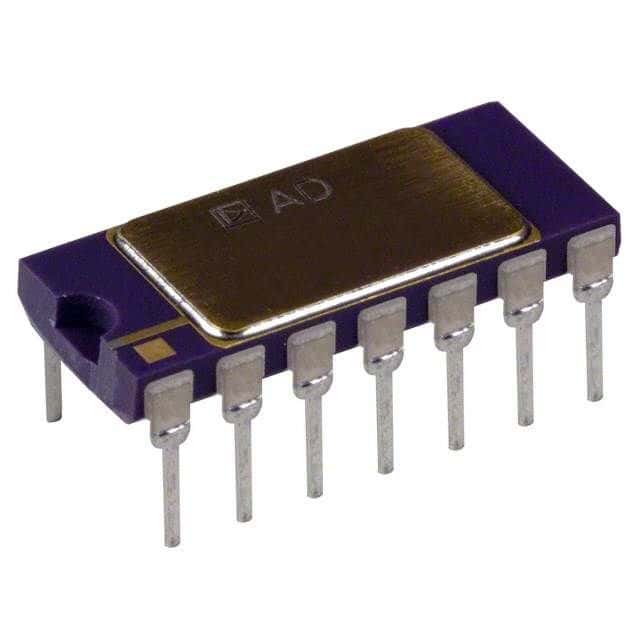

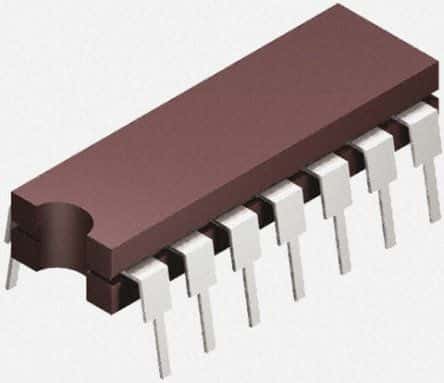

Product Images
