1-bit Arithmetic & Logic Unit (ALU) IC featuring a 400kHz -3dB bandwidth and 1% accuracy. This component operates with a dual supply voltage range of 4.5V to 18V, supporting a maximum input voltage of 10V and delivering an output voltage of 11V. It offers a high-level output current of 10mA and a slew rate of 1.4V/µs. Packaged in a CDIP case with gold contact plating, this through-hole mount device has a maximum power dissipation of 250mW and an operating temperature range of -25°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD538ADZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

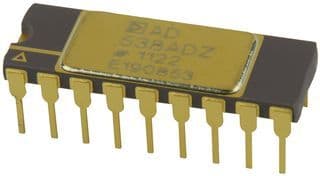

Analog Devices AD538ADZ technical specifications.
| -3db Bandwidth | 400kHz |
| Accuracy | 1% |
| Package/Case | CDIP |
| Contact Plating | Gold |
| Dual Supply Voltage | 15V |
| Height | 3.05mm |
| High Level Output Current | 10mA |
| Lead Free | Contains Lead |
| Length | 23.12mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 4.5V |
| Max Frequency | 400kHz |
| Max Input Voltage | 10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 7mA |
| Output Current | 10mA |
| Output Voltage | 11V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 1.4V/µs |
| Width | 7.62mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD538ADZ to view detailed technical specifications.
