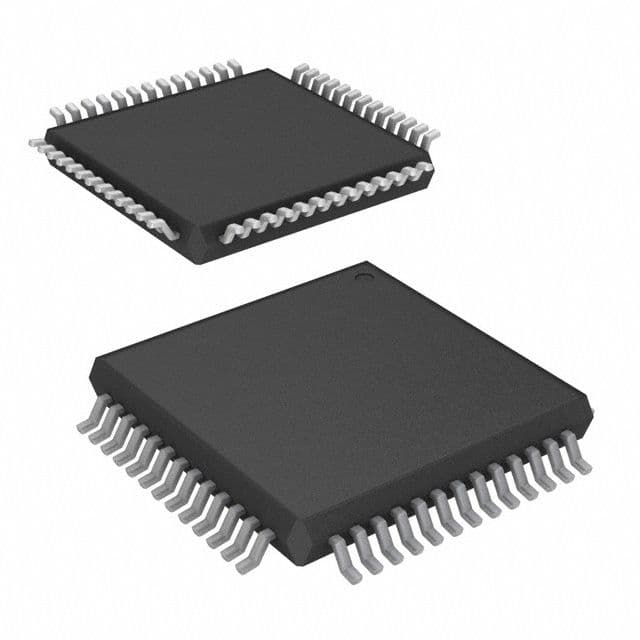

14-bit, 16-channel voltage-output digital-to-analog converter (DAC) with serial input. Features a 125 kS/s conversion rate and 125 kbps data rate, supporting SPI and I2C interfaces. Operates from a single supply of 2.7 V to 5.5 V, with a typical operating voltage of 5 V. Integral nonlinearity is 3 LSB, and settling time is 8 µs. Packaged in LQFP with tin-matte contact plating, suitable for surface-mount technology.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5390BSTZ-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD5390BSTZ-5 technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 125KS/s |
| Data Rate | 125Kbps |
| Differential Output | No |
| Height | 1.4mm |
| Input Type | SERIAL |
| Integral Nonlinearity (INL) | 3LSB |
| Interface | SPI, I2C, Serial |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 0uV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 14 |
| Number of Channels | 16 |
| Number of Converters | 16 |
| Number of D/A Converters | 16 |
| Number of DAC Channels | 16 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 400KS/s |
| Settling Time | 8us |
| Supply Current | 475uA |
| Termination | SMD/SMT |
| Width | 10mm |
| RoHS | Compliant |
