Eight-channel, 14-bit voltage-output digital-to-analog converter (DAC) with a unipolar output. Features a 3V operating supply voltage, compatible with 2.7V to 3.6V input. Supports serial interfaces including I2C, SPI, and 3-wire communication. Achieves a sampling rate of 400 kS/s with a conversion rate of 125 kS/s and a settling time of 8 µs. Integral nonlinearity is rated at 4 LSB. Packaged in LFCSP EP with tin, matte contact plating.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD5392BCPZ-3 technical specifications.
General
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 125KS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | I2C, SPI, Serial, 3-WIRE |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 14 |
| Number of Channels | 8 |
| Number of D/A Converters | 8 |
| Number of DAC Channels | 8 |
| Operating Supply Voltage | 3V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 400KS/s |
| Settling Time | 8us |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD5392BCPZ-3 Datasheet
Download the complete datasheet for Analog Devices AD5392BCPZ-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

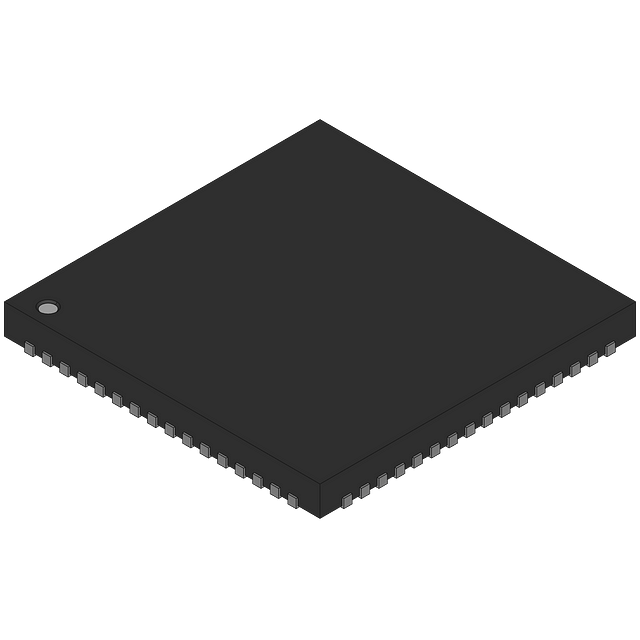

Product Images
