8-bit multiplying digital-to-analog converter (DAC) featuring a 20.4MS/s conversion rate and 30ns settling time. This single-channel DAC offers a parallel interface and a differential output. It operates with a supply voltage of 2.5V to 5.5V and supports input voltages from -10V to 10V, with output voltages ranging from 0µV to 20V. The component is housed in an LFCSP EP package with matte tin plating, measuring 4mm in length and width, and 0.83mm in height. It operates across a temperature range of -40°C to 125°C.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD5424YCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Conversion Rate
20.4MS/s
Differential Output
Yes
Height
0.83mm
Integral Nonlinearity (INL)
0.25LSB
Interface
Parallel
Lead Free
Contains Lead
Length
4mm
Max Input Voltage
10V
Min Input Voltage
-10V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
20V
Min Output Voltage
0uV
Max Power Dissipation
25uW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
20.4MS/s
Settling Time
30ns
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5424YCPZ Datasheet
Download the complete datasheet for Analog Devices AD5424YCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

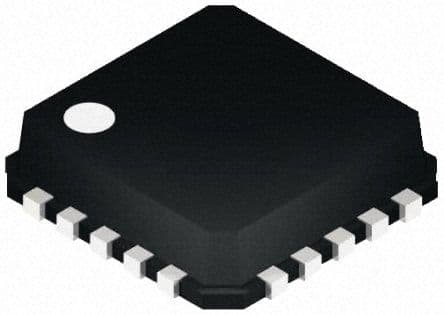

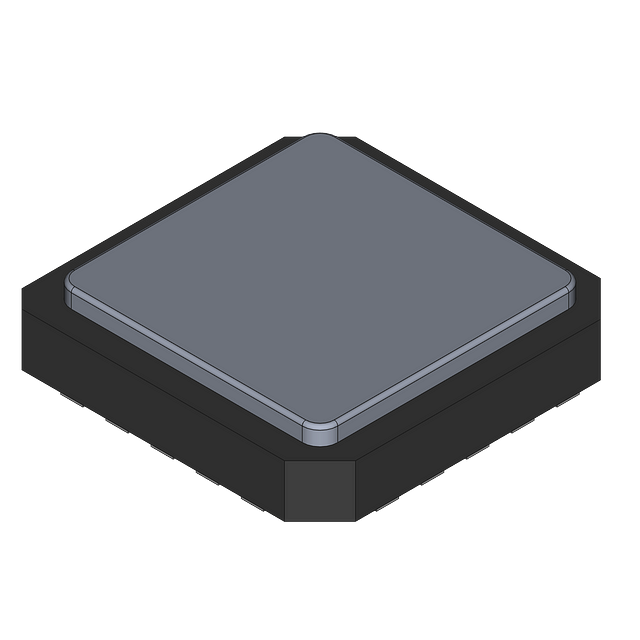

Product Images
