16-channel, 12-bit bipolar voltage-output digital-to-analog converter (DAC) with a 750 kS/s conversion rate. Features 2 LSB integral nonlinearity and 10 LSB full-scale error. Operates with dual supply voltages from 4.75V to 15.75V and supports SPI, serial, and 3-wire interfaces. Packaged in BGA with copper, tin, and silver plating, this component offers a 32 µs settling time and a maximum power dissipation of 243 mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5516ABCZ-3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

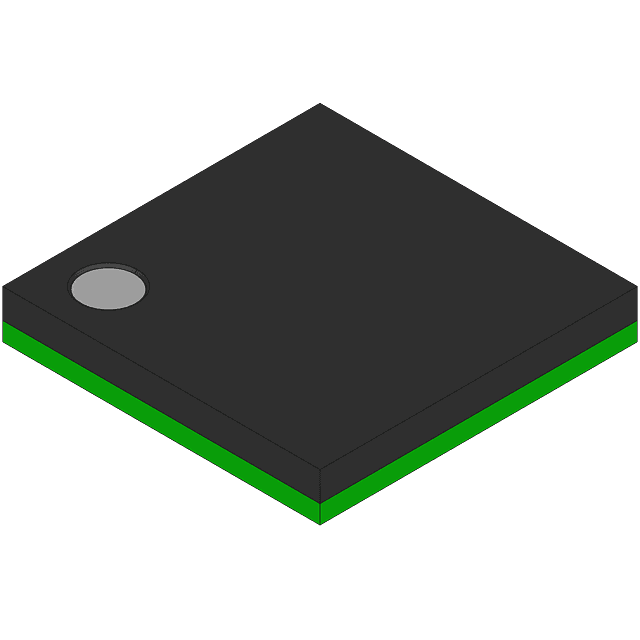

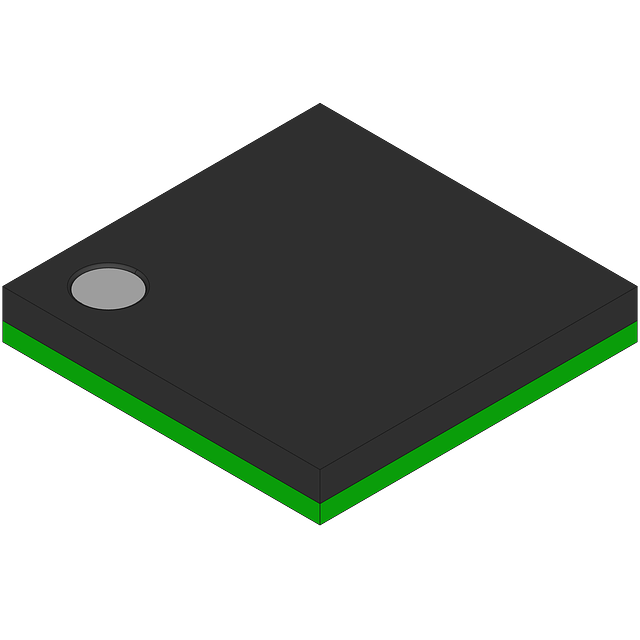

Analog Devices AD5516ABCZ-3 technical specifications.
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 750KS/s |
| Differential Output | No |
| Full Scale Error | 10LSB |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Contains Lead |
| Min Dual Supply Voltage | 4.75V |
| Max Input Voltage | 2.875V |
| Min Input Voltage | 3.125V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 5V |
| Max Power Dissipation | 243mW |
| Max Supply Voltage | 15.75V |
| Min Supply Voltage | 4.75V |
| Number of Bits | 12 |
| Number of Channels | 16 |
| Number of Converters | 16 |
| Number of D/A Converters | 16 |
| Number of DAC Channels | 16 |
| Output Polarity | Bipolar |
| Output Type | Voltage |
| Package Quantity | 189 |
| Packaging | Tray |
| Power Dissipation | 243mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 750KS/s |
| Settling Time | 32us |
| RoHS | Compliant |
