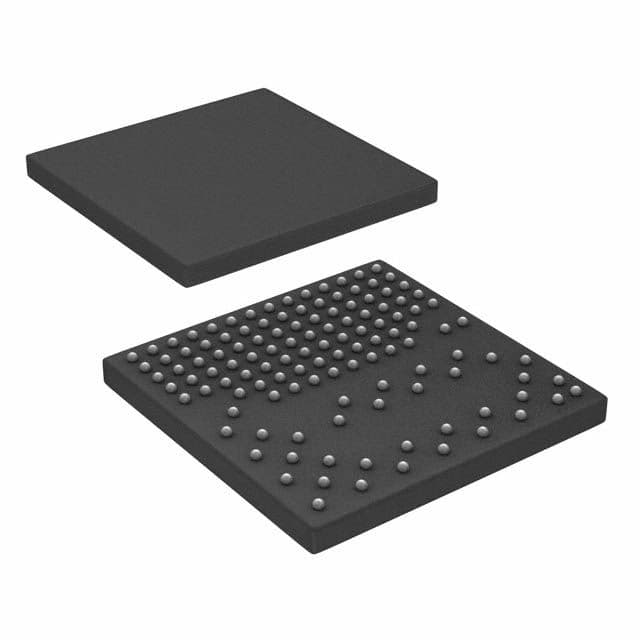

32-channel, 14-bit digital-to-analog converter (DAC) with a programmable full-scale output voltage range of 50V to 200V. Features a 1.2MS/s conversion rate and a 3-wire SPI serial interface. Offers 1LSB full-scale error and a settling time of 30µs. Operates from a 2.7V to 5.25V supply voltage with a typical supply current of 17.5mA. This surface-mount BGA package component is designed for high-density applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5535BKBCZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD5535BKBCZ technical specifications.
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 1.2MS/s |
| Differential Output | No |
| Full Scale Error | 1LSB |
| Height | 1.25mm |
| Interface | Serial, 3-WIRE, SPI |
| Lead Free | Contains Lead |
| Length | 15.1mm |
| Max Input Voltage | 4.096V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Max Output Voltage | 200V |
| Min Output Voltage | 50V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Channels | 32 |
| Number of Converters | 32 |
| Number of D/A Converters | 32 |
| Number of DAC Channels | 32 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 126 |
| Packaging | Tray |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 1.2MS/s |
| Series | denseDAC |
| Settling Time | 30us |
| Supply Current | 17.5mA |
| Width | 15.1mm |
| RoHS | Compliant |
