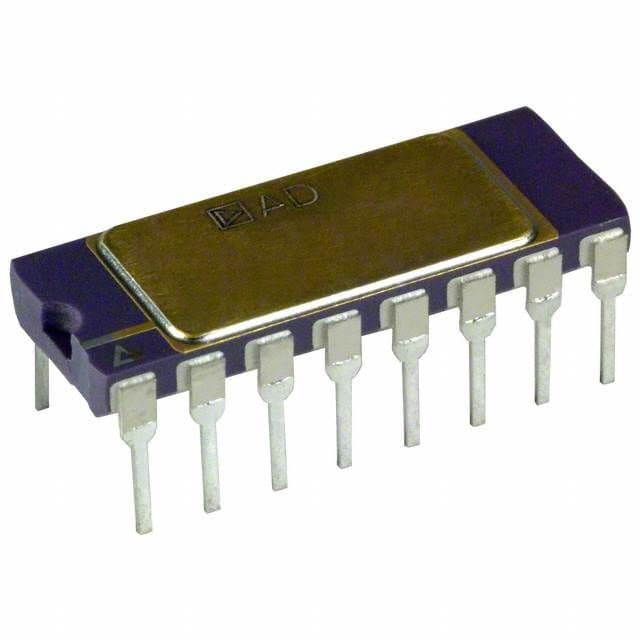

8-bit voltage-output digital-to-analog converter (DAC) featuring a precision output amplifier and full microprocessor interface. Offers 8-bit resolution with integral nonlinearity of 0.375 LSB and full-scale error of 1 LSB. Operates with a 4.5V to 16.5V supply voltage, providing a 2.56V to 10V output voltage range. Includes a parallel interface and a sampling rate of 1.25 MS/s, with a settling time of 800 ns. Packaged in a D case with tin/lead contact plating, operating from -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD558TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD558TD technical specifications.
| Package/Case | D |
| Contact Plating | Tin, Lead |
| Differential Output | No |
| Full Scale Error | 1LSB |
| Height | 2.41mm |
| Integral Nonlinearity (INL) | 0.375LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 20.32mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 10V |
| Min Output Voltage | 2.56V |
| Max Power Dissipation | 450mW |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 4.5V |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Polarity | Bipolar, Unipolar |
| Output Type | Voltage |
| Package Quantity | 23 |
| Packaging | Rail/Tube |
| Power Dissipation | 375mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | No |
| Sampling Rate | 1.25MS/s |
| Series | DACPORT® |
| Settling Time | 800ns |
| Width | 7.37mm |
| RoHS | Not CompliantNo |
