Single-channel, 12-bit digital-to-analog converter (DAC) with a 1.7 MS/s conversion rate. Features a serial I2C interface and a unipolar voltage output. Operates from a single 2.7V to 5.5V supply, with a maximum output voltage of 5.5V. Integral nonlinearity is 6 LSB, and settling time is 6 µs. Maximum power dissipation is 500 µW, with an operating temperature range of -40°C to 125°C. Packaged in tape and reel.
PackageSC
Quick Jump:
Technical Specifications
Analog Devices AD5622ACPZ-2-RL7 technical specifications.
General
| Package/Case | SC |
| Conversion Rate | 1.7MS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | Serial, I2C |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 2.7V |
| Max Power Dissipation | 500uW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 1.7MS/s |
| Series | nanoDAC™ |
| Settling Time | 6us |
| Slew Rate | 0.5V/µs |
| Supply Type | Single |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD5622ACPZ-2-RL7 Datasheet
Download the complete datasheet for Analog Devices AD5622ACPZ-2-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

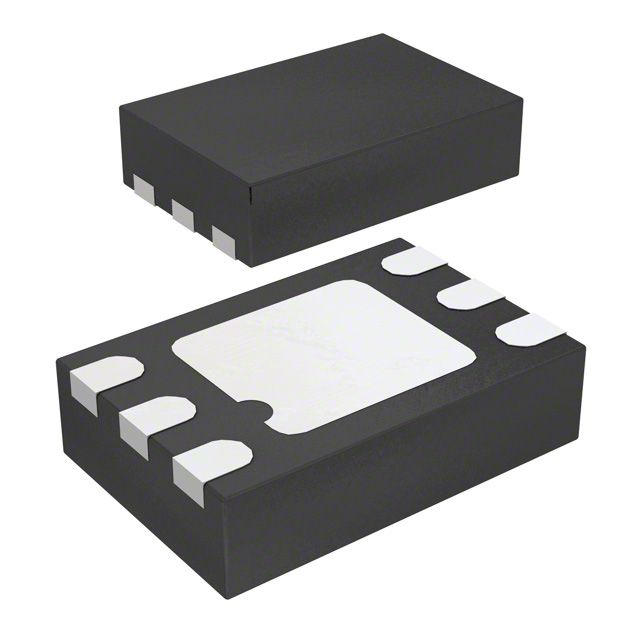

Product Images
