16-bit Digital-to-Analog Converter (DAC) with a serial SPI interface, offering a 125 kS/s conversion rate and 10 µs settling time. This unipolar voltage output DAC features a single channel and a 16-bit resolution. Operating from a 2.7V to 5.5V supply range, it has a maximum power dissipation of 5.5mW and an integral nonlinearity of 32 LSB. Packaged in a SOT-23-8 with tin/lead plating, this component is supplied on a tape and reel.
PackageSOT-23-8
Power5.5mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Analog Devices AD5660ARJ-1500RL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Analog Devices AD5660ARJ-1500RL7 technical specifications.
General
| Package/Case | SOT-23-8 |
| Contact Plating | Tin, Lead |
| Conversion Rate | 125KS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 32LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 3V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Dissipation | 5.5mW |
| Resolution | 16b |
| RoHS Compliant | No |
| Sampling Rate | 125KS/s |
| Series | nanoDAC® |
| Settling Time | 10us |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD5660ARJ-1500RL7 Datasheet
Download the complete datasheet for Analog Devices AD5660ARJ-1500RL7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

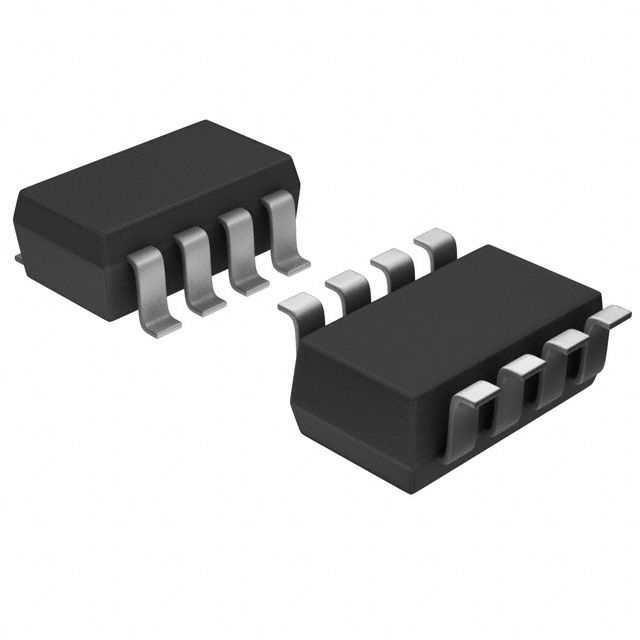

Product Images
