16-bit digital-to-analog converter (DAC) with a serial SPI interface. Features a 125 kS/s sampling rate and 10 µs settling time. Operates from a 2.7V to 5.5V supply voltage, with a typical 3V operating supply. Delivers a voltage output and is housed in a compact SOT-23-8 package.
PackageSOT-23-8
Power5.5mW
Quick Jump:
Technical Specifications
Analog Devices AD5660BRJ-1500RL7 technical specifications.
General
Package/Case
SOT-23-8
Conversion Rate
125KS/s
Differential Output
No
Integral Nonlinearity (INL)
16LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
5mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
3V
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
5.5mW
Radiation Hardening
No
Resolution
16b
RoHS Compliant
No
Sampling Rate
125KS/s
Series
nanoDAC®
Settling Time
10us
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD5660BRJ-1500RL7 Datasheet
Download the complete datasheet for Analog Devices AD5660BRJ-1500RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

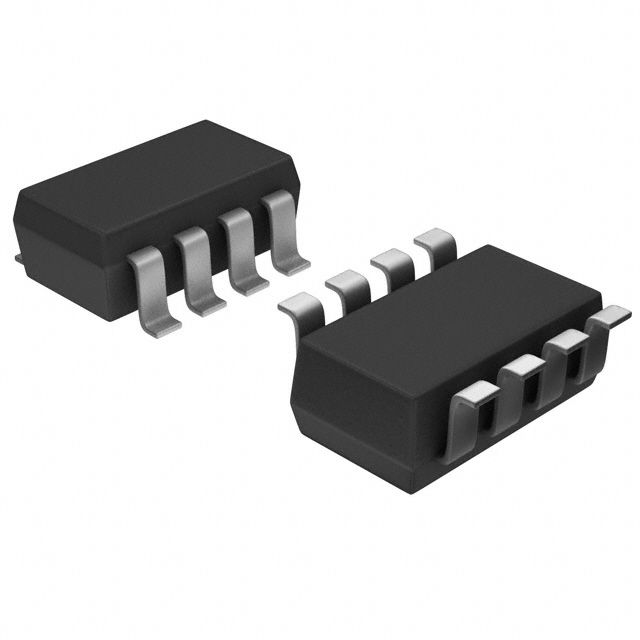

Product Images
