16-bit Digital-to-Analog Converter (DAC) with a single voltage output channel. Features a serial SPI interface and a 125 kS/s conversion rate. Offers a 10µs settling time and 16 LSB integral nonlinearity. Operates from a 2.7V to 5.5V supply voltage, with a maximum power dissipation of 5.5mW. Packaged in an 8-pin SOT-23-8 (PDSO8, MO-178BA) for surface-mount applications.
PackageSOT-23-8
Power5.5mW
Quick Jump:
Technical Specifications
Analog Devices AD5660BRJ-3500RL7 technical specifications.
General
| Package/Case | SOT-23-8 |
| Conversion Rate | 125KS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 16LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 5.5mW |
| Resolution | 16b |
| RoHS Compliant | No |
| Sampling Rate | 125KS/s |
| Series | nanoDAC® |
| Settling Time | 10us |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD5660BRJ-3500RL7 Datasheet
Download the complete datasheet for Analog Devices AD5660BRJ-3500RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

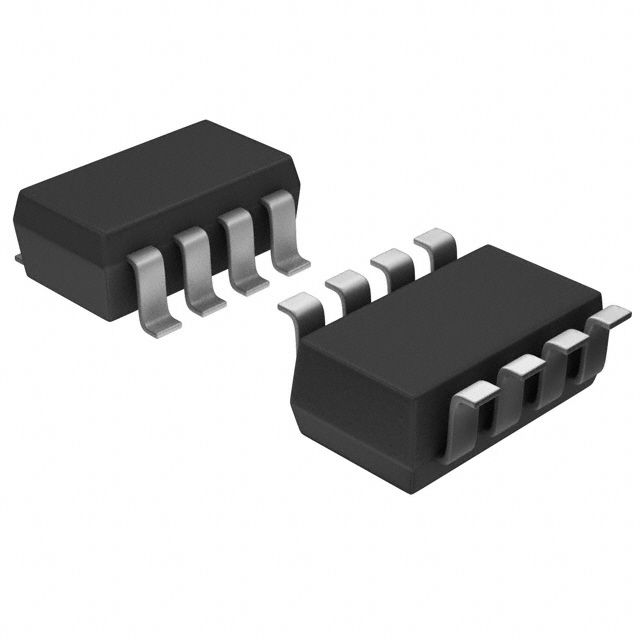

Product Images
