Dual, 12-bit, serial input, voltage output digital-to-analog converter (DAC) with unipolar/bipolar output capabilities. Features a 1MS/s conversion rate, SPI/serial 3-wire interface, and a 7.5µs settling time. Operates with a dual supply voltage range of 4.5V to 16.5V, delivering an output voltage from 4V to 12V. Integral nonlinearity is 1LSB, with a slew rate of 3.5V/µs. Packaged in SOP, this RoHS compliant component offers 12-bit resolution across two DAC channels.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5722AREZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

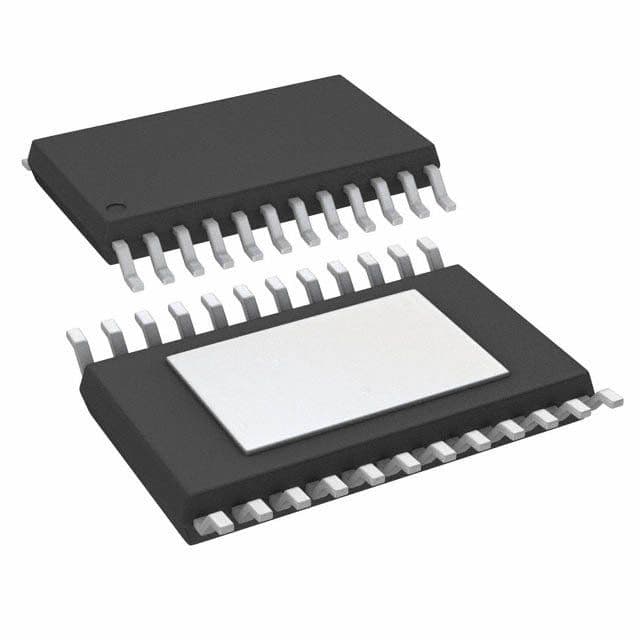

Analog Devices AD5722AREZ technical specifications.
| Package/Case | SOP |
| Conversion Rate | 1MS/s |
| Differential Output | No |
| Dual Supply Voltage | 9V |
| Height | 1mm |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Contains Lead |
| Length | 7.8mm |
| Max Dual Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 4.5V |
| Max Input Voltage | 3V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 12V |
| Min Output Voltage | 4V |
| Max Power Dissipation | 190mW |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 4.5V |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 15V |
| Output Polarity | Bipolar, Unipolar |
| Output Type | Voltage |
| Package Quantity | 62 |
| Packaging | Rail/Tube |
| Power Dissipation | 190mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 1MS/s |
| Series | iCMOS® |
| Settling Time | 7.5us |
| Slew Rate | 3.5V/µs |
| Supply Current | 3.25mA |
| Width | 4.4mm |
| RoHS | Compliant |
