Dual, 14-bit, serial input, voltage output digital-to-analog converter (DAC) with unipolar/bipolar output capabilities. Features a 1MS/s conversion rate, SPI/serial interface, and a 3.5V/µs slew rate. Operates with a dual supply voltage range of 4.5V to 16.5V, offering an output voltage range from 0µV to 21.6V. Housed in a 14-bit SOP package with tin, matte contact plating, this RoHS compliant component has a maximum power dissipation of 190mW and an operating temperature range of -40°C to 85°C.
PackageSOP
Power190mW
Quick Jump:
Technical Specifications
Analog Devices AD5732AREZ technical specifications.
General
Package/Case
SOP
Contact Plating
Tin, Matte
Conversion Rate
1MS/s
Differential Output
No
Dual Supply Voltage
6.5V
Height
1.05mm
Integral Nonlinearity (INL)
4LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Length
7.9mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max Input Voltage
10.8V
Min Input Voltage
-10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
21.6V
Min Output Voltage
0uV
Max Power Dissipation
190mW
Max Supply Voltage
16.5V
Min Supply Voltage
4.5V
Number of Bits
14
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
6.5V
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
62
Packaging
Rail/Tube
Power Dissipation
190mW
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Series
iCMOS®
Settling Time
10us
Slew Rate
3.5V/µs
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5732AREZ Datasheet
Download the complete datasheet for Analog Devices AD5732AREZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

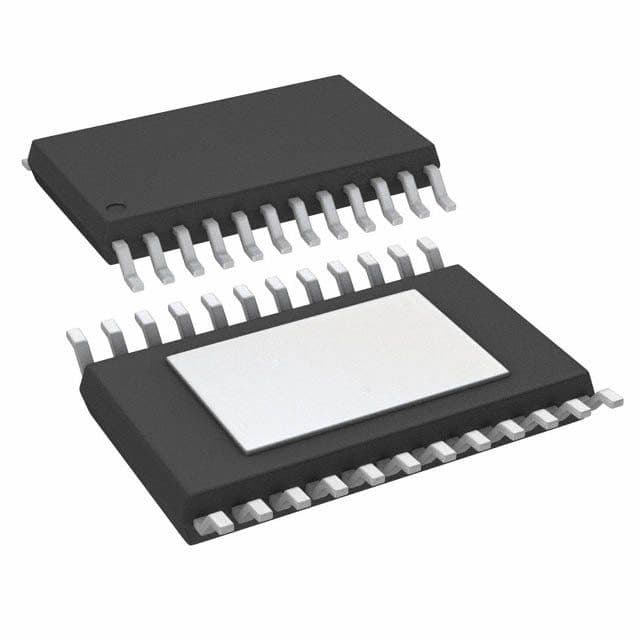

Product Images
