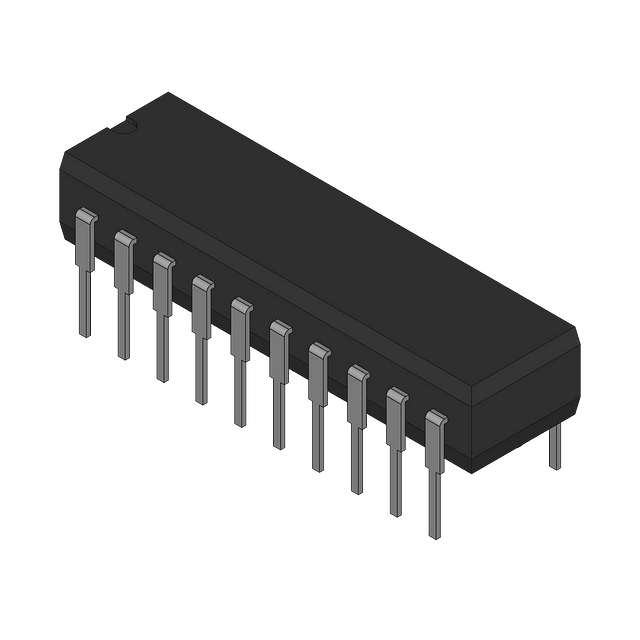

The AD573JN is a 10-bit analog-to-digital converter with a single analog input and a single A/D converter. It operates over a temperature range of -55°C to 125°C and has a power dissipation of 325mW. The device is packaged in a DIP-20 package and is not RoHS compliant. It has a bipolar and unipolar polarity and is available in a rail/Tube packaging format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD573JN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 325mW |
| Resolution | 10b |
| RoHS Compliant | No |
| RoHS | Not Compliant |
