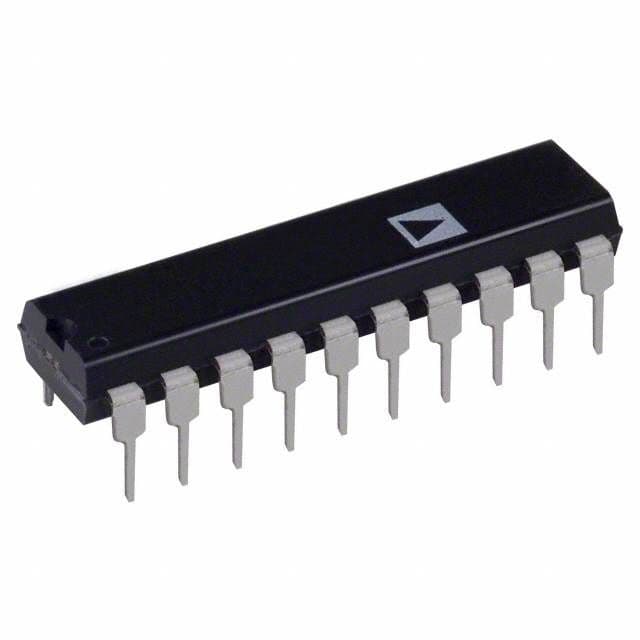

10-bit successive approximation analog-to-digital converter (ADC) with a single-ended input. Features a 10-bit resolution and a parallel interface. Operates with bipolar and unipolar supply types. Integral nonlinearity is 0.5 LSB. Packaged in a PDIP with tin, matte contact plating, suitable for through-hole mounting. Maximum power dissipation is 325mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD573KNZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 325mW |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 800mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Supply Type | Dual |
| RoHS | Compliant |
