Quad 16-bit bipolar voltage output digital-to-analog converter (DAC) with serial SPI interface. Features a 1.26MS/s conversion rate, 4LSB integral nonlinearity, and 8µs settling time. Operates with dual supply voltages from 11.4V to 16.5V, providing output voltages between 20V and 22V. Housed in a QFP package with tin matte contact plating, this RoHS compliant component offers a 5V/µs slew rate and a maximum power dissipation of 381mW.
PackageQFP
Power275mW
Quick Jump:
Technical Specifications
Analog Devices AD5764ASUZ technical specifications.
General
Package/Case
QFP
Contact Plating
Tin, Matte
Conversion Rate
1.26MS/s
Differential Output
No
Dual Supply Voltage
15V
Height
1mm
Integral Nonlinearity (INL)
4LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Length
7mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Input Voltage
5V
Min Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
22V
Min Output Voltage
20V
Max Power Dissipation
381mW
Max Supply Voltage
16.5V
Min Supply Voltage
11.4V
Nominal Supply Current
3.5mA
Number of Bits
16
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
250
Packaging
Tray
Power Dissipation
275mW
Radiation Hardening
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1.26MS/s
Series
iCMOS®
Settling Time
8us
Slew Rate
5V/µs
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5764ASUZ Datasheet
Download the complete datasheet for Analog Devices AD5764ASUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

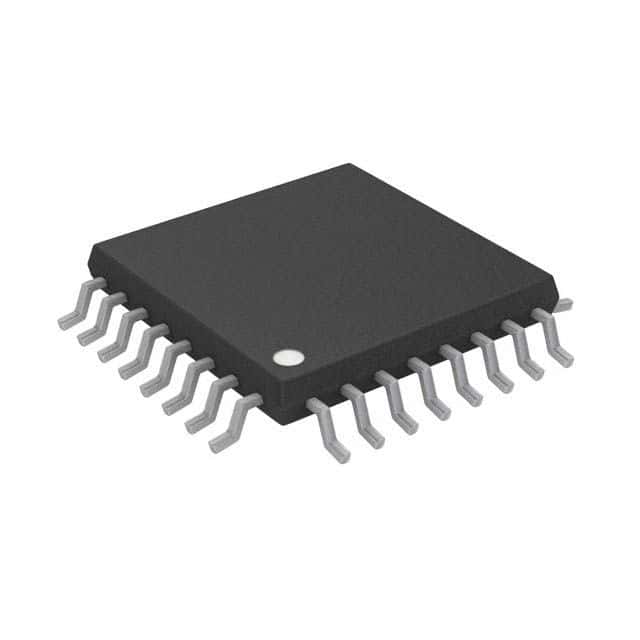

Product Images
