Quad, 16-bit, bipolar voltage output digital-to-analog converter (DAC) with serial SPI interface. Features 1LSB differential nonlinearity and 2LSB integral nonlinearity, supporting a 1MS/s conversion rate. Operates with dual supply voltages from 11.4V to 15V and a single supply from 2.7V to 5.25V. Housed in a QFP package with tin-matte contact plating, this component offers a 14V maximum output voltage and a 5V/µs slew rate.
PackageQFP
Current3.55mA
Power275mW
Quick Jump:
Technical Specifications
Analog Devices AD5764RBSUZ technical specifications.
General
Package/Case
QFP
Contact Plating
Tin, Matte
Conversion Rate
1MS/s
Differential Nonlinearity
1LSB
Differential Output
No
Dual Supply Voltage
15V
Height
1mm
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Length
7mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Input Voltage
5V
Min Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
14V
Min Output Voltage
2V
Max Power Dissipation
275mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
1
Packaging
Tray
Power Dissipation
275mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Series
iCMOS®
Settling Time
8us
Slew Rate
5V/µs
Supply Current
3.55mA
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5764RBSUZ Datasheet
Download the complete datasheet for Analog Devices AD5764RBSUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

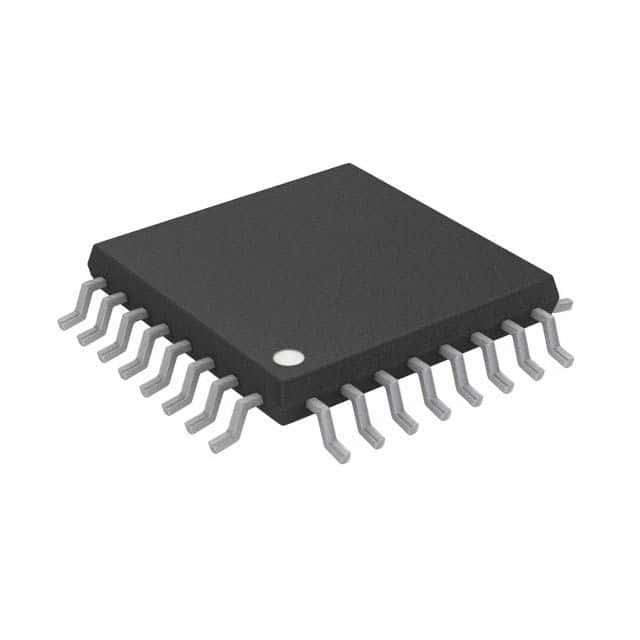

Product Images
