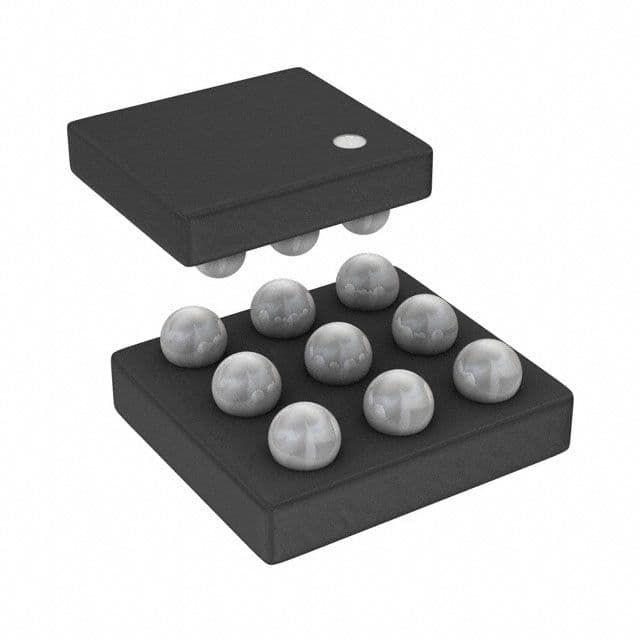

The AD5821BCBZ-REEL is a 10-bit single-channel digital-to-analog converter with I2C and SPI interfaces. It operates over a temperature range of -30°C to 85°C. The device is packaged in a lead-free WLCSP-9 package and is RoHS compliant. The AD5821BCBZ-REEL features an integral nonlinearity of 4 LSB and a settling time of 250us. It is available in quantities of 10,000 units per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5821BCBZ-REEL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Differential Output | No |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Settling Time | 250us |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD5821BCBZ-REEL to view detailed technical specifications.
