Sample and Hold Amplifier, featuring a 1.5MHz -3dB bandwidth and 1.5MHz gain bandwidth product. This single-channel IC offers a 3V/µs slew rate and 500ns settling time. Operates with dual supply voltages from ±9V to ±18V, typically ±15V, drawing 3mA operating supply current. Input bias current is 1.5µA with a 2mV input offset voltage. Packaged in a 10-pin TO-100 through-hole configuration, it supports a 25mA output current per channel and operates between 0°C and 70°C.
PackageTO-100
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD582KH technical specifications.
General
-3db Bandwidth
1.5MHz
Bandwidth
1.5MHz
Package/Case
TO-100
Contact Plating
Tin, Lead
Dual Supply Voltage
15V
Gain Bandwidth Product
1.5MHz
Input Bias Current
1.5uA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
9V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
3mA
Operating Supply Voltage
15V
Output Current per Channel
25mA
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
No
Settling Time
500ns
Slew Rate
3V/µs
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD582KH Datasheet
Download the complete datasheet for Analog Devices AD582KH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

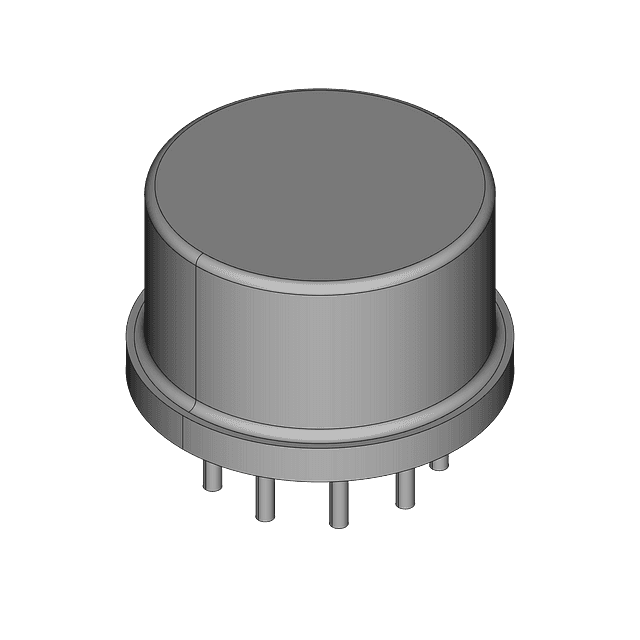

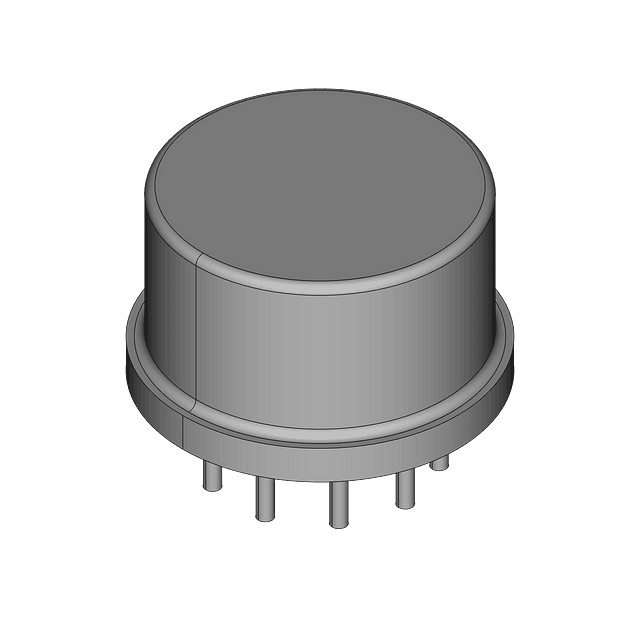

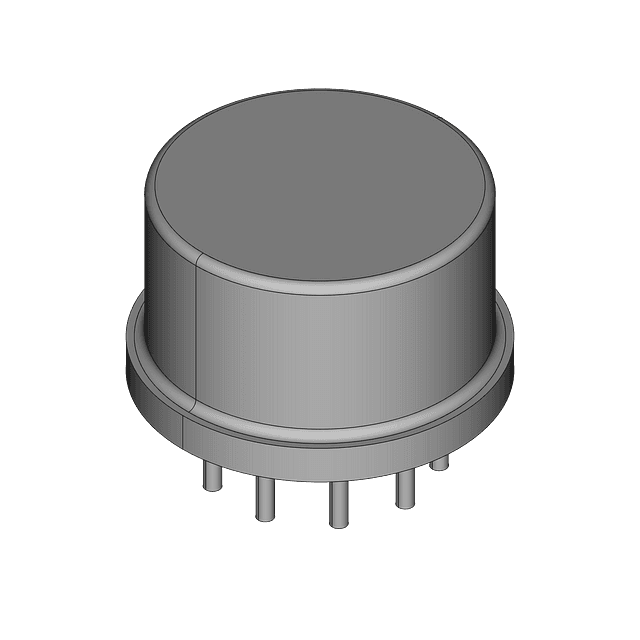

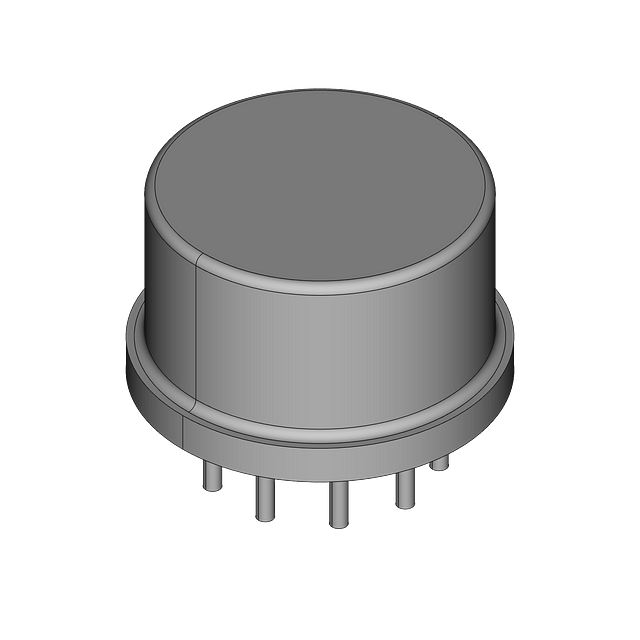

Product Images
