Single-channel sample and hold amplifier with 2MHz bandwidth and 5µs acquisition time. Features a 10V/µs slew rate and 50mA output current per channel. Operates from dual supplies up to ±15V, with a maximum supply voltage of ±18V. Surface mountable in a 20-pin PLCC package with tin-matte contact plating. Suitable for operation across a -55°C to 70°C temperature range.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD585JPZ technical specifications.
General
-3db Bandwidth
2MHz
Bandwidth
2MHz
Package/Case
PLCC
Contact Plating
Tin, Matte
Dual Supply Voltage
15V
Height
3.69mm
Input Bias Current
2nA
Input Offset Voltage (Vos)
5mV
Lead Free
Contains Lead
Length
8.97mm
Max Operating Temperature
70°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
-10.8V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
10mA
Output Current per Channel
50mA
Package Quantity
49
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
0.5us
Slew Rate
10V/µs
Width
8.97mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD585JPZ Datasheet
Download the complete datasheet for Analog Devices AD585JPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

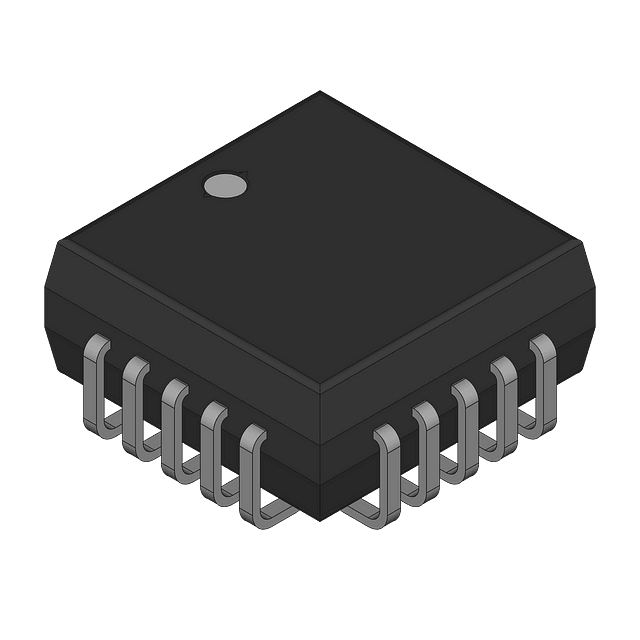

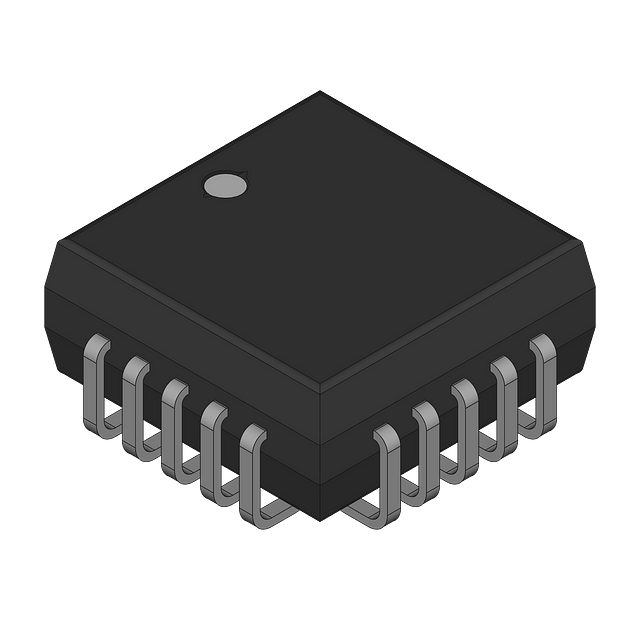

Product Images
