Dual tracking voltage reference IC offering high precision with a 0.03% tolerance. Features multiple outputs, each capable of delivering up to 10mA at a fixed 10V. Operates across a wide temperature range from -55°C to 125°C with a maximum input voltage of 36V. Packaged in a 10-lead DIP, this RoHS compliant component is suitable for demanding applications.
PackageDIP
Current10mA
Quick Jump:
Technical Specifications
Analog Devices AD588ARWZ technical specifications.
General
| Package/Case | DIP |
| Height | 2.35mm |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Input Voltage | 36V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 10mA |
| Max Output Voltage | 10V |
| Min Output Voltage | 10V |
| Operating Supply Current | 10mA |
| Output Current | 10mA |
| Output Voltage | 10V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Series |
| Reference Voltage | 10V |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Tolerance | 0.03% |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD588ARWZ Datasheet
Download the complete datasheet for Analog Devices AD588ARWZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

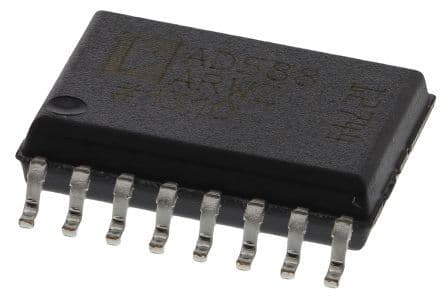

Product Images
