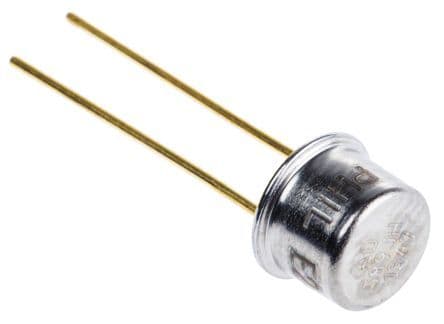

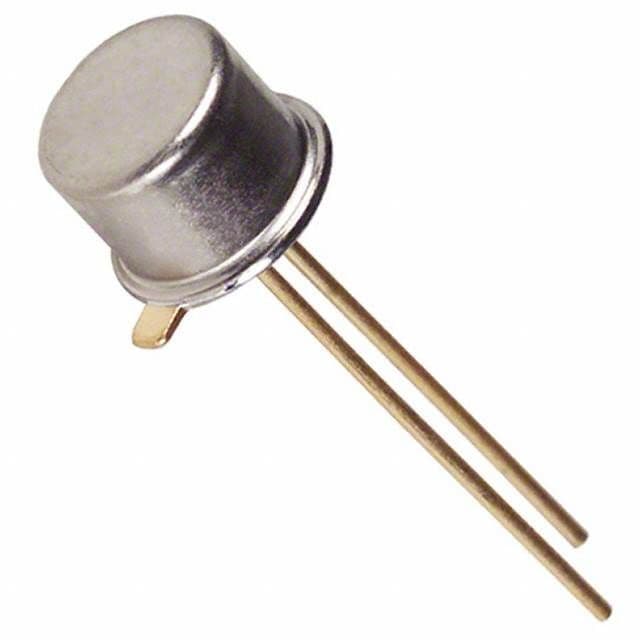

This two-terminal integrated circuit is a 1.2V shunt voltage reference, offering a stable output voltage between 1.2V and 1.235V with a tolerance of 1.215%. It operates with a low supply current of 50µA and supports an output current of up to 5mA. Designed for through-hole mounting in a TO-51 package, this component features a maximum power dissipation of 125mW and operates across a wide temperature range from -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD589JH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-51 |
| Cathode Current | 5mA |
| Height | 1mm |
| Lead Free | Contains Lead |
| Length | 7mm |
| Max Input Current | 5mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 5mA |
| Max Output Voltage | 1.235V |
| Min Output Voltage | 1.2V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Current | 50uA |
| Output Current | 5mA |
| Output Voltage | 1.235V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 125mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt |
| Reference Voltage | 1.235V |
| RoHS Compliant | Yes |
| Supply Current | 50uA |
| Tolerance | 1.215% |
| Width | 7mm |
| RoHS | Compliant |
