12-bit Direct Digital Synthesizer operating at 16.776MHz, featuring a single 12-bit DAC with a 250KS/s conversion rate. This clock generator and synthesizer offers 0.5% accuracy and supports serial I2C communication. Designed for surface mounting, it operates within a 2.7V to 5.5V supply voltage range and consumes a nominal 1mA. The component is housed in a 16-pin SSOP package, measuring 6.2mm in length, 5.3mm in width, and 1.75mm in height, with an operating temperature range of -40°C to 125°C.
Frequency16.776MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD5934YRSZ technical specifications.
General
Accuracy
0.5%
Package/Case
SSOP
Conversion Rate
250KS/s
Frequency
16.776MHz
Height
1.75mm
Lead Free
Contains Lead
Length
6.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
1mA
Number of Bits
12
Number of Converters
1
Operating Supply Current
1mA
Package Quantity
77
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250KS/s
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5934YRSZ Datasheet
Download the complete datasheet for Analog Devices AD5934YRSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

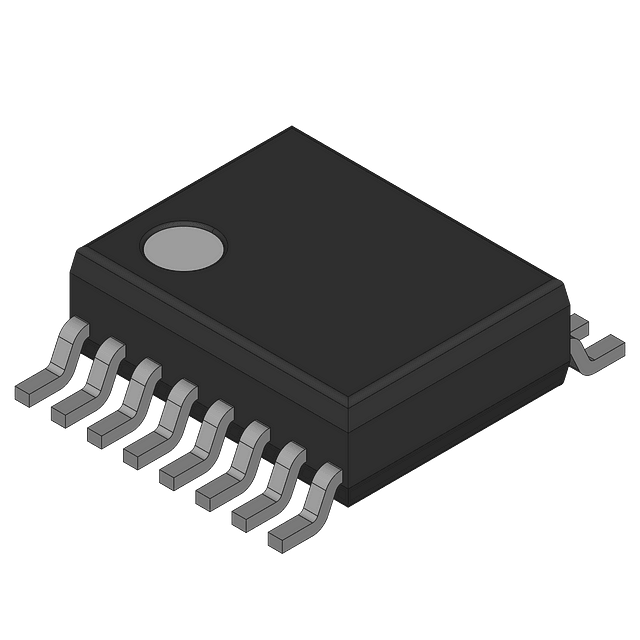

Product Images
