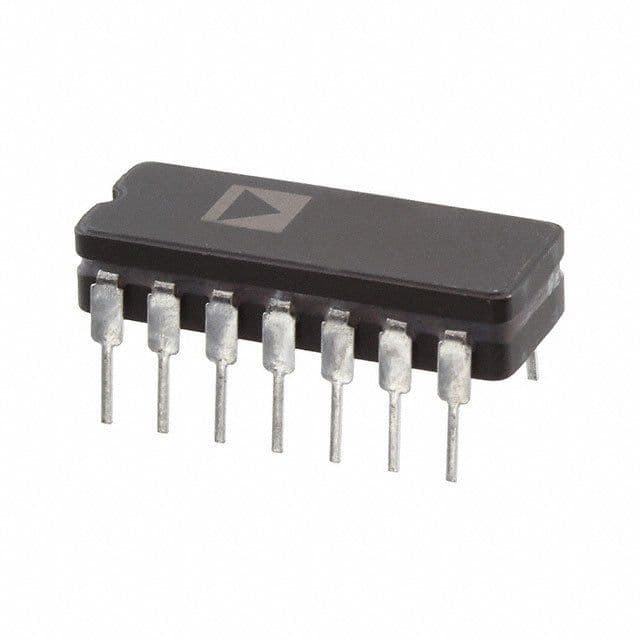

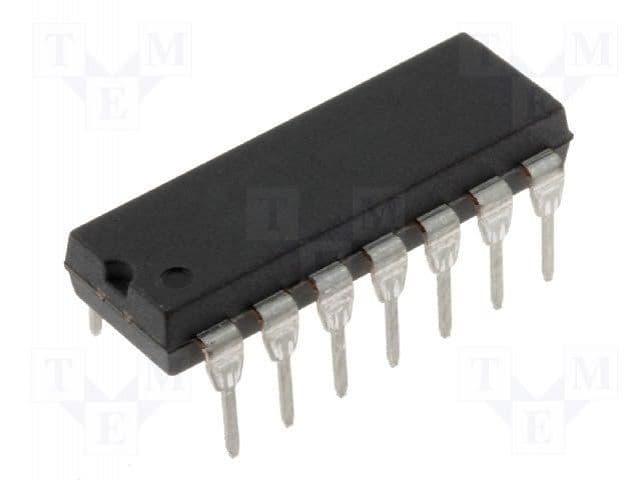

Instrumentation amplifier for Type K thermocouples, featuring integrated cold junction compensation. Offers a 15kHz bandwidth and a gain bandwidth product of 15kHz. Operates with dual supply voltages from 5V to 15V, drawing a typical supply current of 160µA. Provides an analog output with a maximum output voltage of 13V. Encased in a Q package with through-hole termination and tin/lead contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD595AQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 15kHz |
| Package/Case | Q |
| Contact Plating | Tin, Lead |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 15kHz |
| Height | 3.76mm |
| Interface | Analog |
| Lead Free | Contains Lead |
| Length | 19.55mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 5V |
| Number of Amplifiers | 1 |
| Operating Supply Current | 300uA |
| Output | ANALOG |
| Output Current | 5mA |
| Output Type | Analog |
| Output Voltage | 13V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 160uA |
| Termination | Through Hole |
| Width | 6.6mm |
| RoHS | Not Compliant |
