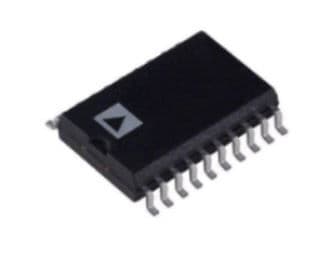

LVDT Signal Conditioner IC, featuring a 20kHz bandwidth and surface mount SOIC package. Operating voltage range is 13V to 36V, with a maximum input voltage of 3.5V and output voltage up to 24V. This component offers a 40mA output current and 15mA operating supply current, with an input bias current of 5uA. It is RoHS compliant and designed for operation between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD598JRZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 20kHz |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Height | 2.35mm |
| Input Bias Current | 5uA |
| Lead Free | Contains Lead |
| Length | 13mm |
| Max Input Voltage | 3.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 13V |
| Mount | Surface Mount |
| Operating Supply Current | 15mA |
| Output Current | 40mA |
| Output Type | Voltage |
| Output Voltage | 24V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
| Width | 7.6mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD598JRZ to view detailed technical specifications.
