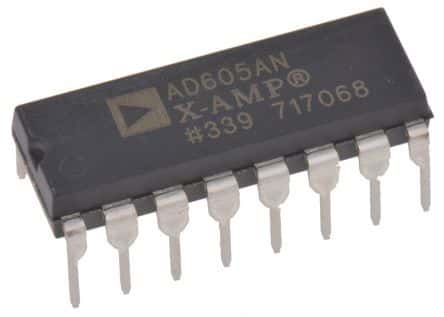

Dual, low noise, single-supply variable gain amplifier featuring a 40MHz -3dB bandwidth and 170V/µs slew rate. This specialized IC offers two independent amplifiers with a voltage gain of 34dB and a gain bandwidth product of 40MHz. Designed for through-hole mounting in a PDIP package, it operates from a 4.5V to 5.5V supply, drawing 23mA typical operating current. Key specifications include a 400nA input bias current, 175Ω input resistance, and an 8.4dB noise figure.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD605ANZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 40MHz |
| Bandwidth | 40MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 20dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 40MHz |
| Height | 4.95mm |
| Input Bias Current | 400nA |
| Input Resistance | 175R |
| Lead Free | Contains Lead |
| Length | 20.32mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.4W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Noise Figure | 8.4dB |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 23mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 40mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | X-AMP® |
| Slew Rate | 170V/µs |
| Termination | Through Hole |
| Voltage Gain | 34dB |
| Width | 7.11mm |
| RoHS | Compliant |
