50 MHz demodulating logarithmic amplifier with limiter output. Features a 50MHz -3dB bandwidth, 80dB dynamic range, and a 400ns response time. Operates from a 4.5V to 5.5V supply voltage, with a typical operating supply current of 13mA. Packaged in a SOIC surface mount case with tin, matte contact plating.
PackageSOIC
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Analog Devices AD606JRZ technical specifications.
General
| -3db Bandwidth | 50MHz |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Height | 1.5mm |
| Input Bias Current | 4uA |
| Input Resistance | 2.5kR |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 600mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 9 |
| Operating Supply Current | 13mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 1.2mA |
| Packaging | Rail/Tube |
| Power Dissipation | 65mW |
| Quiescent Current | 13mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 400ns |
| RoHS Compliant | Yes |
| Weight | 0.023492oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD606JRZ Datasheet
Download the complete datasheet for Analog Devices AD606JRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

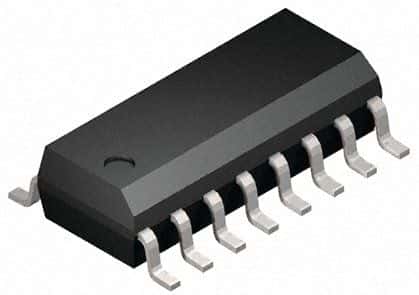

Product Images
