High Common-Mode Voltage, Programmable Gain Difference Amplifier, featuring a 600kHz -3dB bandwidth and 600kHz gain bandwidth product. This dual operational amplifier offers a 75dB Common Mode Rejection Ratio and 77dB Power Supply Rejection Ratio. Designed for surface mount applications in a MSOP package, it operates with dual supply voltages from 2.25V to 18V, or single supply from 4.5V to 36V. Key specifications include a 1.5nA input bias current, 1.5mV input offset voltage, and a 220kΩ input resistance.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD628ARZ technical specifications.
General
-3db Bandwidth
600kHz
Bandwidth
600kHz
Package/Case
MSOP
Common Mode Rejection Ratio
75dB
Contact Plating
Tin, Matte
Dual Supply Voltage
9V
Gain Bandwidth Product
600kHz
Height
1.5mm
Input Bias Current
1.5nA
Input Offset Voltage (Vos)
1.5mV
Input Resistance
220kR
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1.6mA
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
1
Number of Circuits
1
Number of Elements
2
Operating Supply Current
1.6mA
Operating Supply Voltage
28V
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
77dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
40us
Slew Rate
0.3V/µs
Termination
SMD/SMT
Voltage Gain
40dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD628ARZ Datasheet
Download the complete datasheet for Analog Devices AD628ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

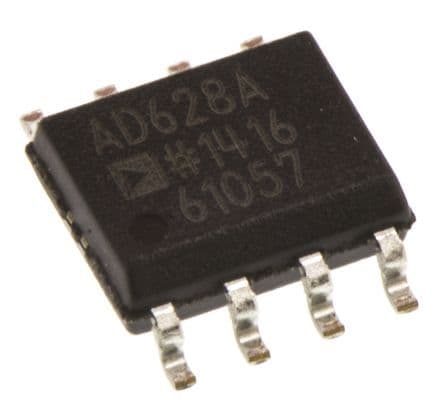

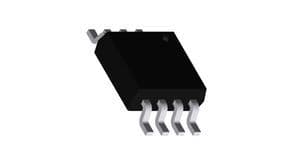

Product Images
