High common-mode voltage differential amplifier with a 500kHz -3dB bandwidth and 500kHz gain bandwidth product. Features 86dB CMRR and 84dB PSRR, operating from ±2.5V to ±9V dual supplies, with a maximum of ±18V. Offers 500µV input offset voltage, 800kΩ input resistance, and 25mA output current per channel. This single-channel, surface-mount SOIC package amplifier has a slew rate of 2.1V/µs and settling time of 15µs.
PackageSOIC
Voltage44V
Current900uA
Resistance800kR
Quick Jump:
Technical Specifications
Analog Devices AD629ARZ technical specifications.
General
-3db Bandwidth
500kHz
Amplifier Type
DIFFERENTIAL
Bandwidth
500kHz
Package/Case
SOIC
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
9V
Gain Bandwidth Product
500kHz
Height
1.5mm
Input Offset Voltage (Vos)
500uV
Input Resistance
800kR
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1mA
Output Current per Channel
25mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
84dB
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
800kR
RoHS Compliant
Yes
Settling Time
15us
Slew Rate
2.1V/µs
Supply Current
900uA
Voltage
44V
Voltage Gain
0dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD629ARZ Datasheet
Download the complete datasheet for Analog Devices AD629ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

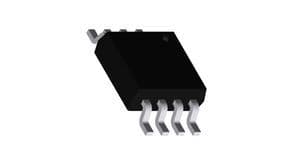

Product Images
