Balanced Modulator/Demodulator IC, surface mount, SOIC package with tin matte plating. Operates from 5V to 16.5V supply voltage with a typical 5mA supply current. Features a frequency range of 0Hz to 2MHz and a maximum power dissipation of 600mW. Suitable for operation between -25°C and 85°C.
Frequency2MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD630ARZ technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Height
2.35mm
Lead Free
Contains Lead
Length
13mm
Max Frequency
2MHz
Min Frequency
0Hz
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
600mW
Max Supply Current
5mA
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Mount
Surface Mount
Operating Supply Current
5mA
Operating Supply Voltage
15V
Package Quantity
37
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Termination
SMD/SMT
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD630ARZ Datasheet
Download the complete datasheet for Analog Devices AD630ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

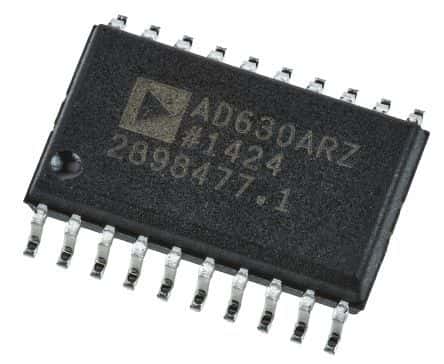

Product Images
