ANALOG DEVICES

AD632AHZ

Datasheet

4-Bit Analog Multiplier/Divider IC, 1MHz, 0.5% Acc, TO-100

Analog Devices

AD632AHZ

Name: AD632AHZ Analog Devices
Brand: Analog Devices
SKU: AD632AHZ

4-Bit Analog Multiplier/Divider IC, 1MHz, 0.5% Acc, TO-100

Four-bit analog multiplier/divider IC featuring a 1MHz bandwidth and 0.5% accuracy. This through-hole component operates with a dual supply voltage range of ±8V to ±18V, typically ±15V, and offers a 20V/µs slew rate. Housed in a 10-pin TO-100 package with gold contact plating, it provides a 70dB voltage gain and a response time of 2µs. Operating temperature range is -25°C to 85°C.

Frequency1MHz

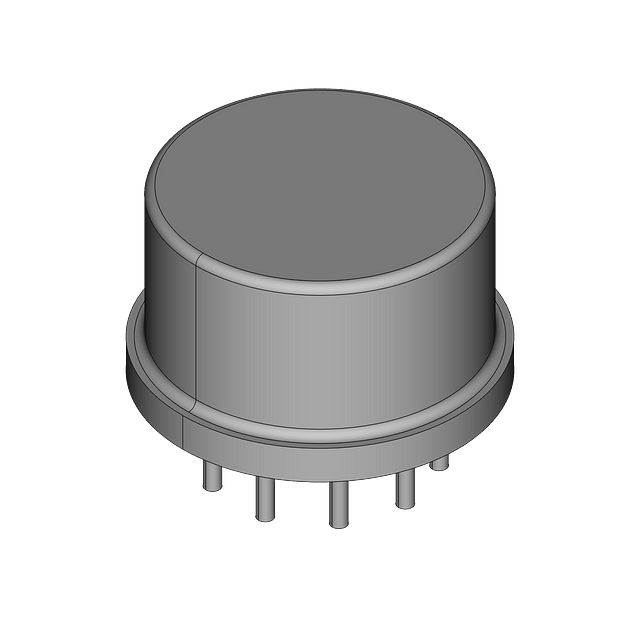

PackageTO-100

MountingThrough Hole

Quick Jump:

Technical Specifications

Analog Devices AD632AHZ technical specifications.

General

-3db Bandwidth	1MHz
Accuracy	0.5%
Package/Case	TO-100
Contact Plating	Gold
Dual Supply Voltage	15V
Frequency	1MHz
Height	4.7mm
Input Bias Current	800nA
Input Offset Voltage (Vos)	5mV
Length	9.4mm
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	8V
Max Frequency	1MHz
Max Input Voltage	12V
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Max Supply Voltage	18V
Min Supply Voltage	8V
Mount	Through Hole
Number of Amplifiers	1
Number of Bits	4
Number of Circuits	1
Number of Elements	1
Operating Supply Current	6mA
Operating Supply Voltage	15V
Output Voltage	11V
Packaging	Bulk
Radiation Hardening	No
Reach SVHC Compliant	No
Response Time	2us
RoHS Compliant	Yes
Settling Time	2us
Slew Rate	20V/µs
Voltage Gain	70dB
Width	9.4mm
