PackageTO-100
Current800uA
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Analog Devices AD636JH technical specifications.
General
| Bandwidth | 1.5MHz |
| Package/Case | TO-100 |
| Contact Plating | Tin, Lead |
| Height | 4.7mm |
| Input Current | 1mA |
| Lead Free | Contains Lead |
| Length | 9.4mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Operating Supply Current | 1mA |
| Packaging | Bulk |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | AD636 |
| Supply Current | 800uA |
| Termination | Through Hole |
| Width | 9.4mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices AD636JH Datasheet
Download the complete datasheet for Analog Devices AD636JH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

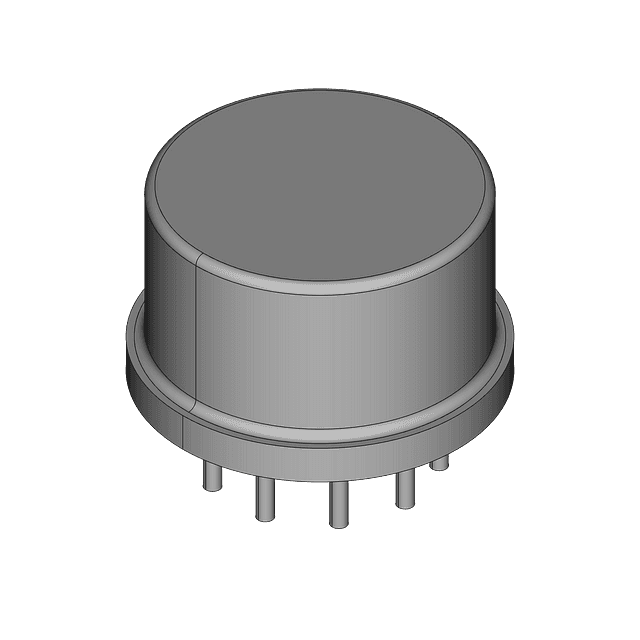

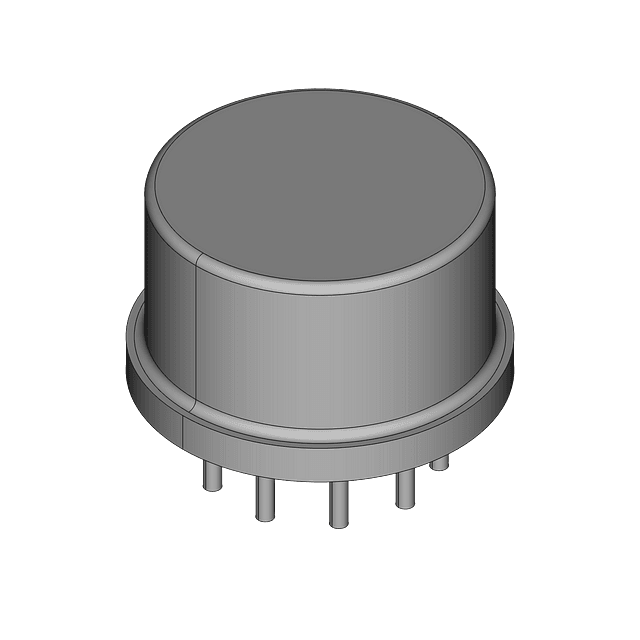

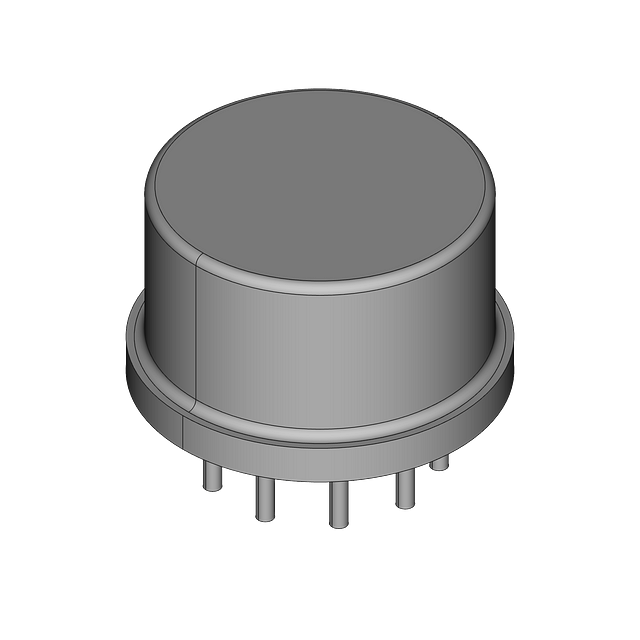

Product Images
