PackageDIP
Current2.2mA
MountingThrough Hole
Power108mW
Quick Jump:
Technical Specifications
Analog Devices AD637JDZ technical specifications.
General
| -3db Bandwidth | 600kHz |
| Bandwidth | 200kHz |
| Package/Case | DIP |
| Contact Plating | Gold |
| Height | 5.08mm |
| Lead Free | Contains Lead |
| Length | 19.94mm |
| Max Input Voltage | 10.6V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 108mW |
| Mount | Through Hole |
| Number of Converters | 1 |
| Operating Supply Current | 3mA |
| Operating Supply Voltage | 15V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Consumption | 108mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.2mA |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD637JDZ Datasheet
Download the complete datasheet for Analog Devices AD637JDZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

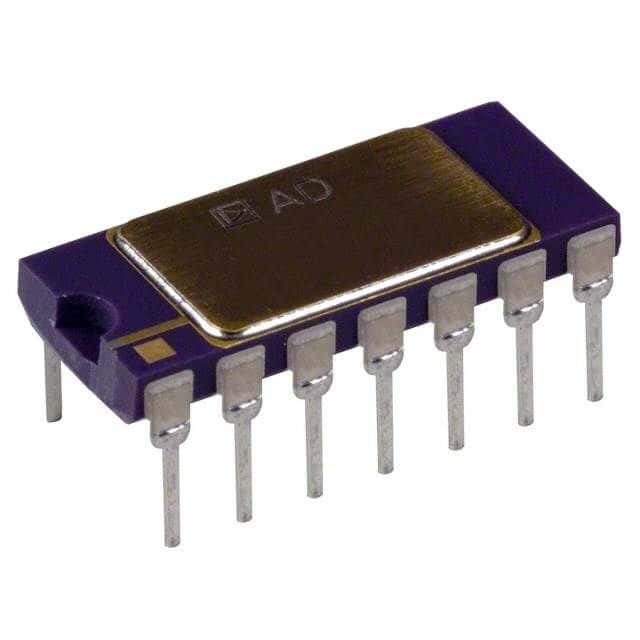

Product Images
