DC-coupled, 120 MHz logarithmic amplifier featuring a 145 MHz -3dB bandwidth. This single-channel integrated circuit offers a 500 kΩ input resistance and a 50 µV input offset voltage. Operates with a dual supply voltage range of 4.5V to 7.5V, with a nominal supply current of 44mA. Packaged in an LCC with gold contact plating, suitable for surface mounting. Maximum power dissipation is 200mW, with a response time of 10ns.
PackageLCC
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Analog Devices AD640TE/883B technical specifications.
General
-3db Bandwidth
145MHz
Package/Case
LCC
Contact Plating
Gold
Dual Supply Voltage
5V
Input Bias Current
25uA
Input Offset Voltage (Vos)
50uV
Input Resistance
500kR
Lead Free
Contains Lead
Max Dual Supply Voltage
7.5V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Supply Voltage
7.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Supply Current
44mA
Number of Channels
1
Number of Elements
5
Operating Supply Current
44mA
Output Current per Channel
2.3mA
Packaging
Rail/Tube
Power Dissipation
200mW
Response Time
10ns
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD640TE/883B Datasheet
Download the complete datasheet for Analog Devices AD640TE/883B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

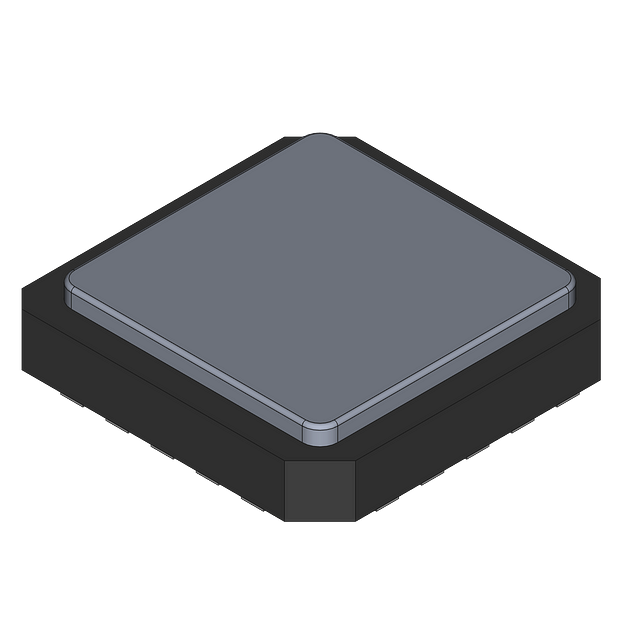

Product Images
