Frequency5MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD652JP-REEL7 technical specifications.
General
Accuracy
2%
Package/Case
PLCC
Contact Plating
Tin, Lead
Dual Supply Voltage
15V
Frequency
5MHz
Lead Free
Contains Lead
Linearity
0.02%
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
6V
Max Frequency
2MHz
Max Input Voltage
10V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Min Supply Voltage
12V
Mount
Surface Mount
Nominal Supply Current
15mA
Operating Supply Current
15mA
Package Quantity
250
Packaging
Tape and Reel
Reference Voltage
5V
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD652JP-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD652JP-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

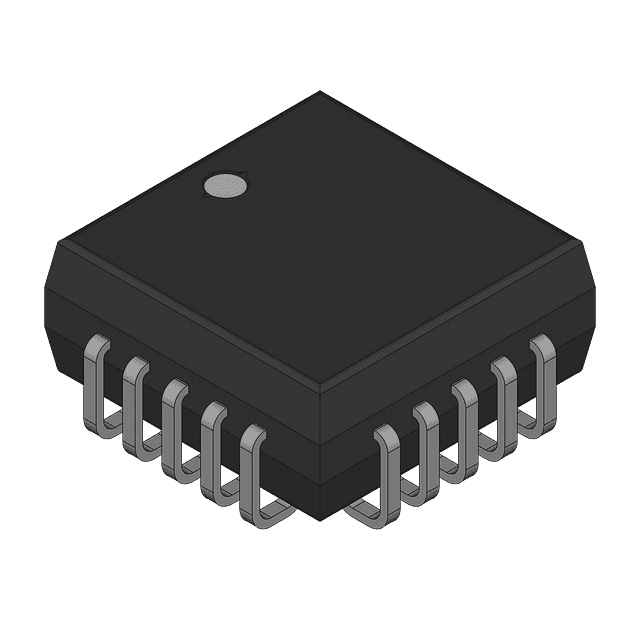

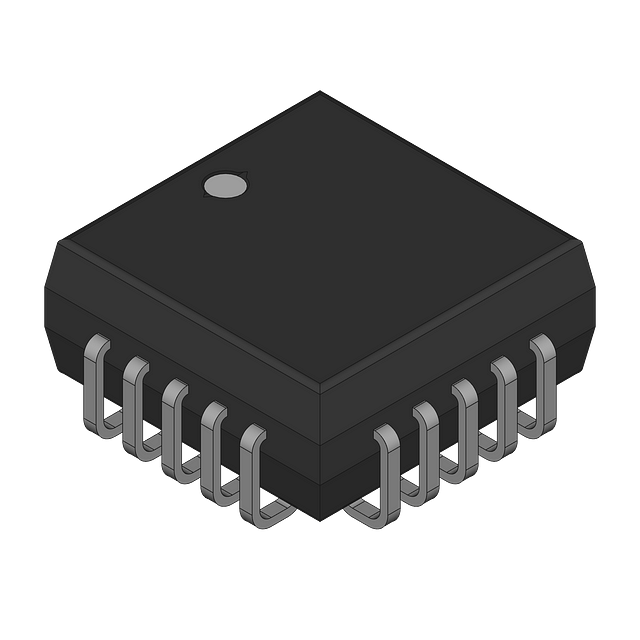

Product Images
