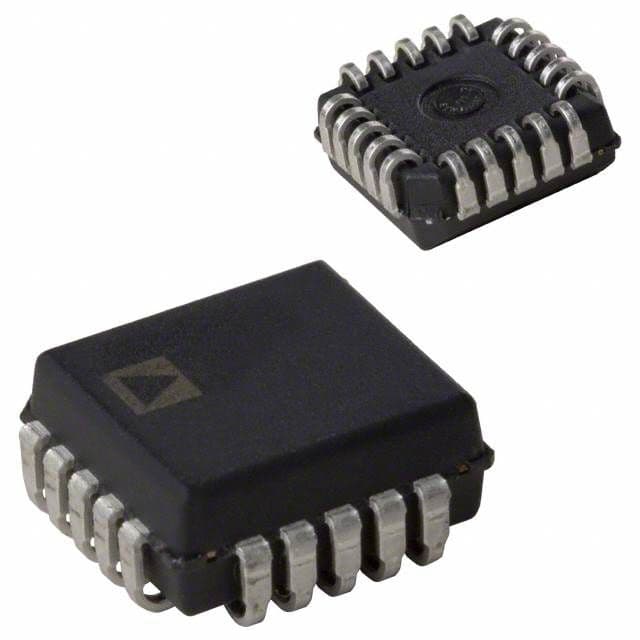

Voltage-to-Frequency Converter IC featuring 2MHz maximum frequency and 0.02% linearity. This surface mount component offers 2% accuracy and operates with a dual supply voltage range of ±6V to ±18V, with a nominal supply current of 15mA. The PLCC package with tin, matte contact plating is supplied on tape and reel, containing lead and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD652JPZ-REEL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD652JPZ-REEL7 technical specifications.
| Accuracy | 2% |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Dual Supply Voltage | 15V |
| Frequency | 5MHz |
| Lead Free | Contains Lead |
| Linearity | 0.02% |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 6V |
| Max Frequency | 2MHz |
| Max Input Voltage | 10V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 12V |
| Mount | Surface Mount |
| Nominal Supply Current | 15mA |
| Operating Supply Current | 15mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Reference Voltage | 5V |
| RoHS Compliant | Yes |
| RoHS | Compliant |
